A6 Quattro Wagon V6-3.2L (BKH) (2006)
/Page-3407009.png)
If specified value is not obtained:
-
Repair the wiring.
If the specified value is obtained:
-
Replace the relevant ignition coil => Fuel Injection and Ignition 24 Removal and Installation.
‹› Fuel must not be injected during the test to avoid damaging the catalytic converter.
-

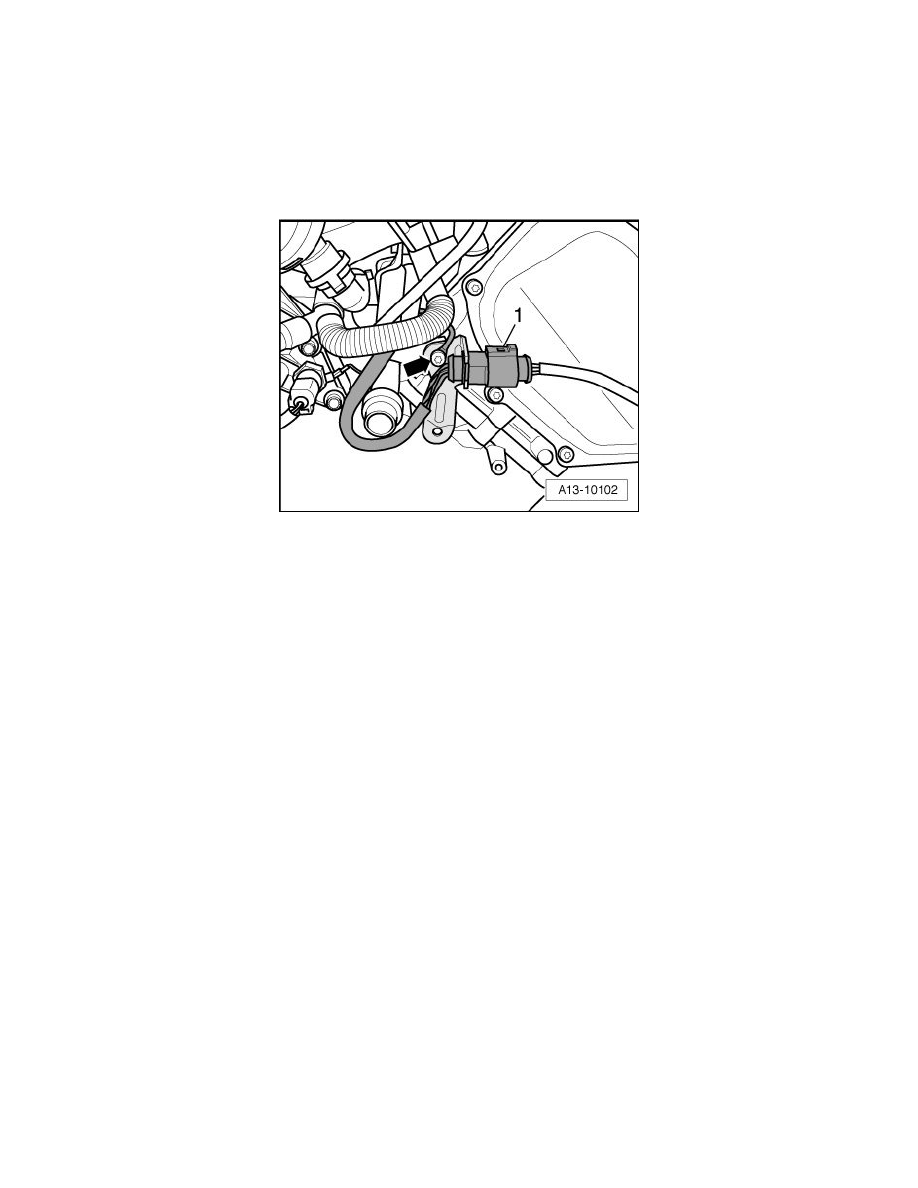

Disconnect the fuel injector wiring harness electrical connector - 1 -.
-
Using a diode test lamp, check the Ignition Coil electrical harness connector terminals 2 to 3 for voltage.
-
Operate the starter briefly.
The LED must blink (brief blink signal).
-
Switch the ignition off.
If the LED blinks:
-
Replace the relevant, ignition coil with power output stage.
If the LED does not blink:
If the manufacturers test box is being used, perform the following step.
-
Connect the Test Box 105 Pin (VAG1598/42) with Adapter Cable (1598/39-1) => Fuel Injection and Ignition 24 Diagnosis and Testing.
If the manufacturers test box is not being used, perform the following step.
-
Remove the Engine Control Module (ECM) (J623). Refer to=> [ Engine Control Module, Replacing ] See: Computers and Control
Systems/Engine Control Module/Service and Repair/Engine Control Module, Replacing.
