A6 Quattro Wagon V6-3.2L (BKH) (2006)
/Page-3738003.png)

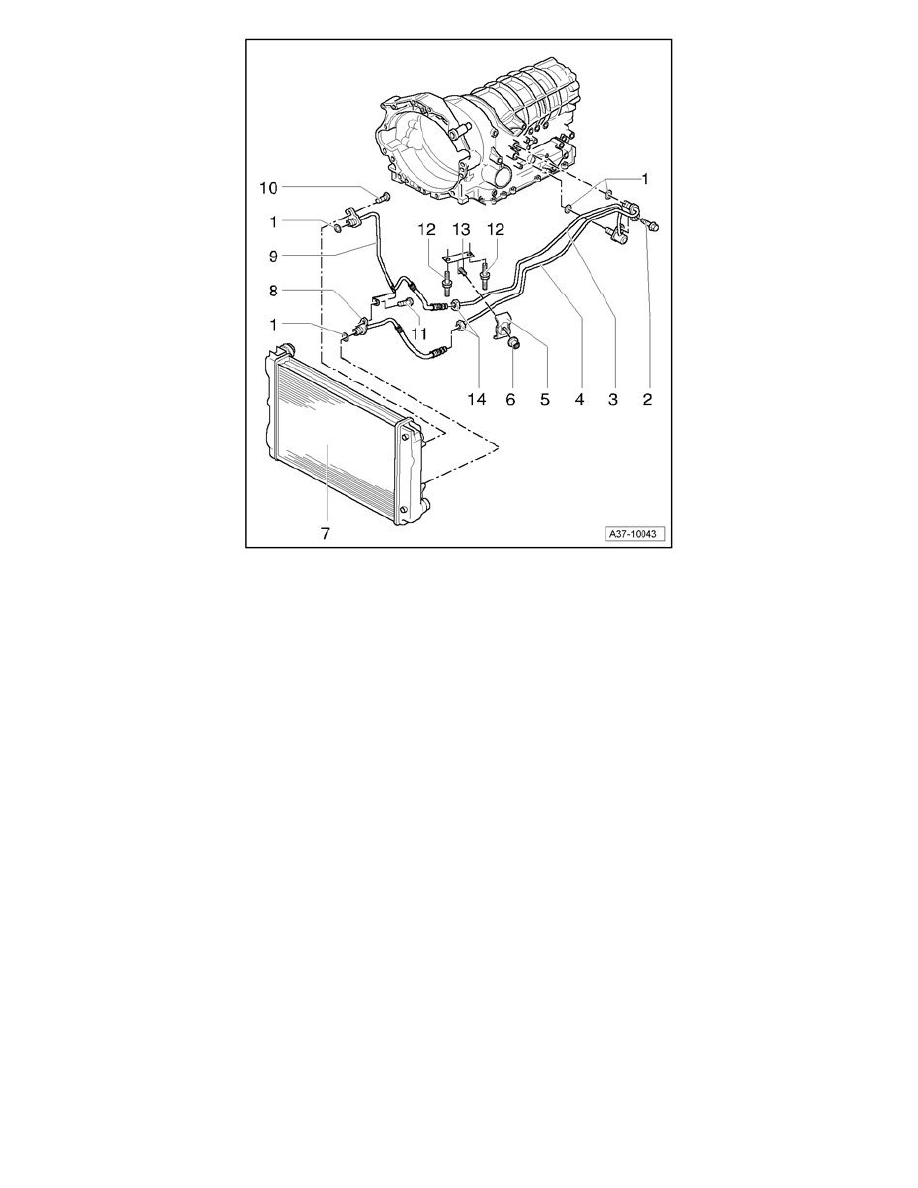

1 - O-rings
^
Always replace
^
Lubricate with ATF when installing
2 - Bolt, 21 Nm
^
Do not tighten until lines have been fully inserted
3 - ATF line
^
Note correct location
4 - ATF line
^
Note correct location
5 - Bracket for ATF line
6 - Nut, 5 Nm
7 - ATF cooler
8 - ATF line
^
Note correct location
9 - ATF line
^
Note correct location
10 - Bolt, 5 Nm
^
Do not tighten until lines have been fully inserted
11 - Bolt, 5 Nm
^
Do not tighten until lines have been fully inserted
12 - Center hex stud, 7 Nm
13 - Bracket
