Coolant Line/Hose: Locations

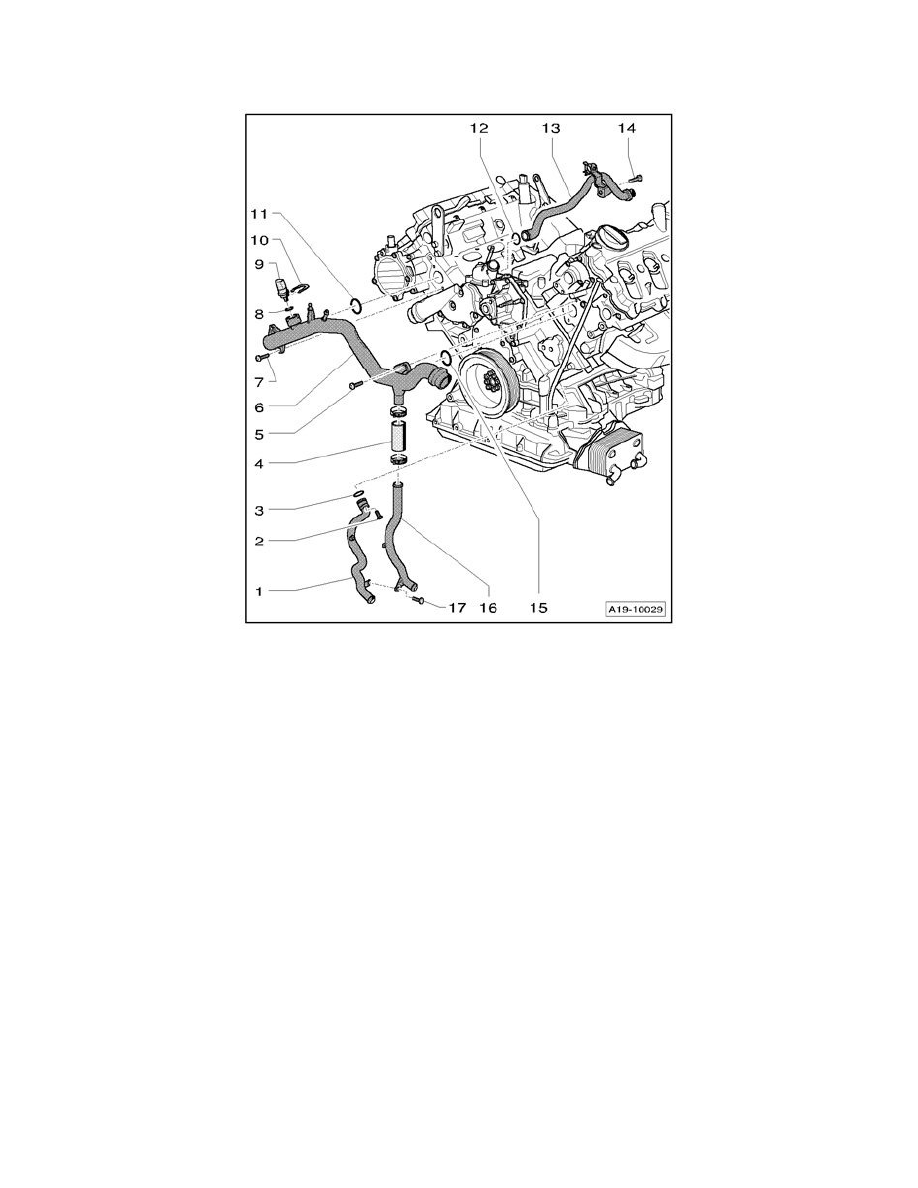

Coolant pipes, component overview

1. Left coolant line

2. 9 Nm

3. O-ring

^

Replace

4. Connecting hose

5. 9 Nm

6. Front coolant line

7. 9 Nm

8. O-ring

^

Replace

9. Engine Coolant Temperature (ECT) Gauge Sensor G2 / Engine Coolant Temperature (ECT) Sensor G62

10. Retaining clip

11. Seal

^

Replace

12. O-ring

^

Replace

13. Upper coolant line
