Drive Belt: Diagrams

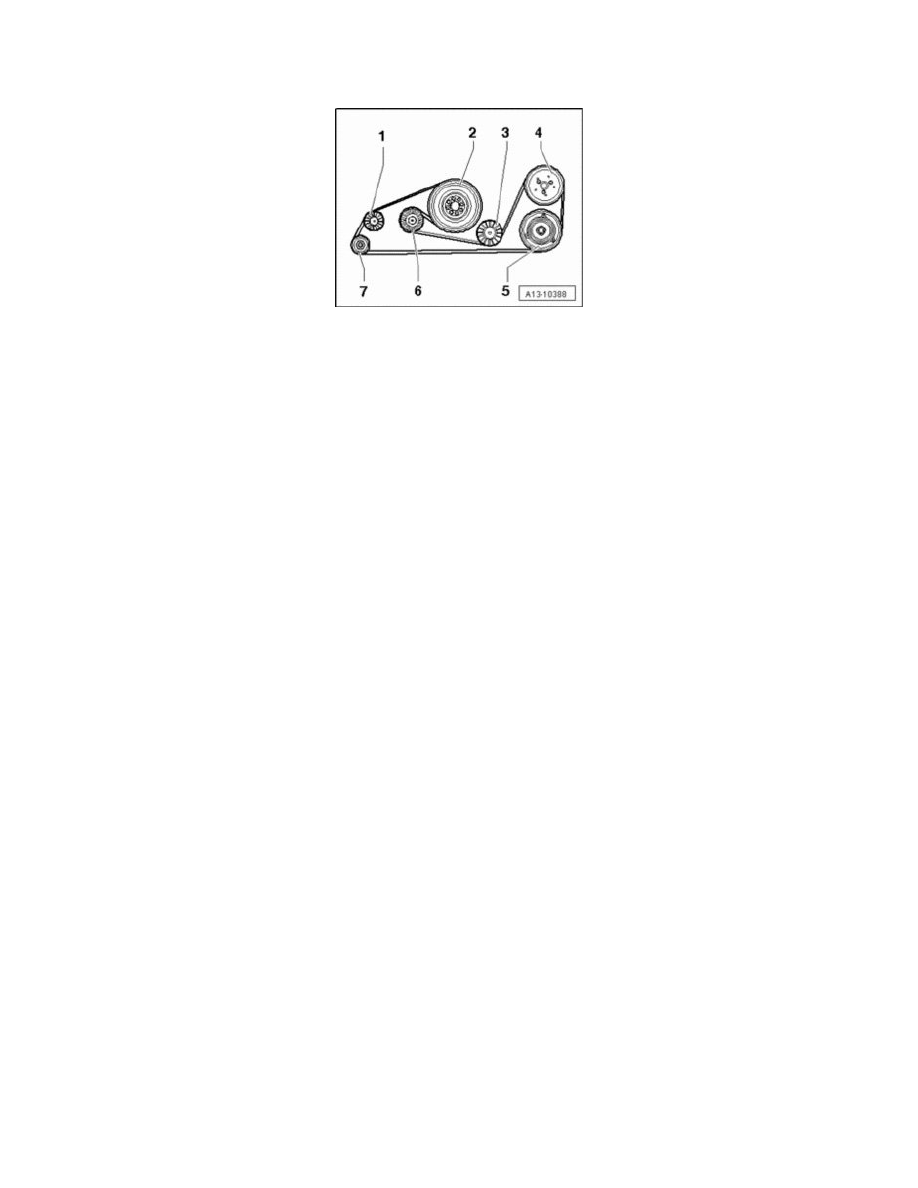

Ribbed belt
-
Place ribbed belt over belt pulley in specified sequence.
1. Upper idler pulley
2. Crankshaft
3. Lower idler pulley
4. Power steering pump
5. Air conditioner compressor
6. Tensioning device for ribbed belt
7. Generator
