Drive Belt: Diagrams
- Make
- Audi
- Model
- A8L Quattro Sedan
- Engine
- V8-4.2L (BVJ)
- Year
- 2007
- Section
- Drive Belt › Diagrams
MaintenanceDiagrams
/Page-1595001.png)
Drive Belt: Diagrams
Ribbed belt
-

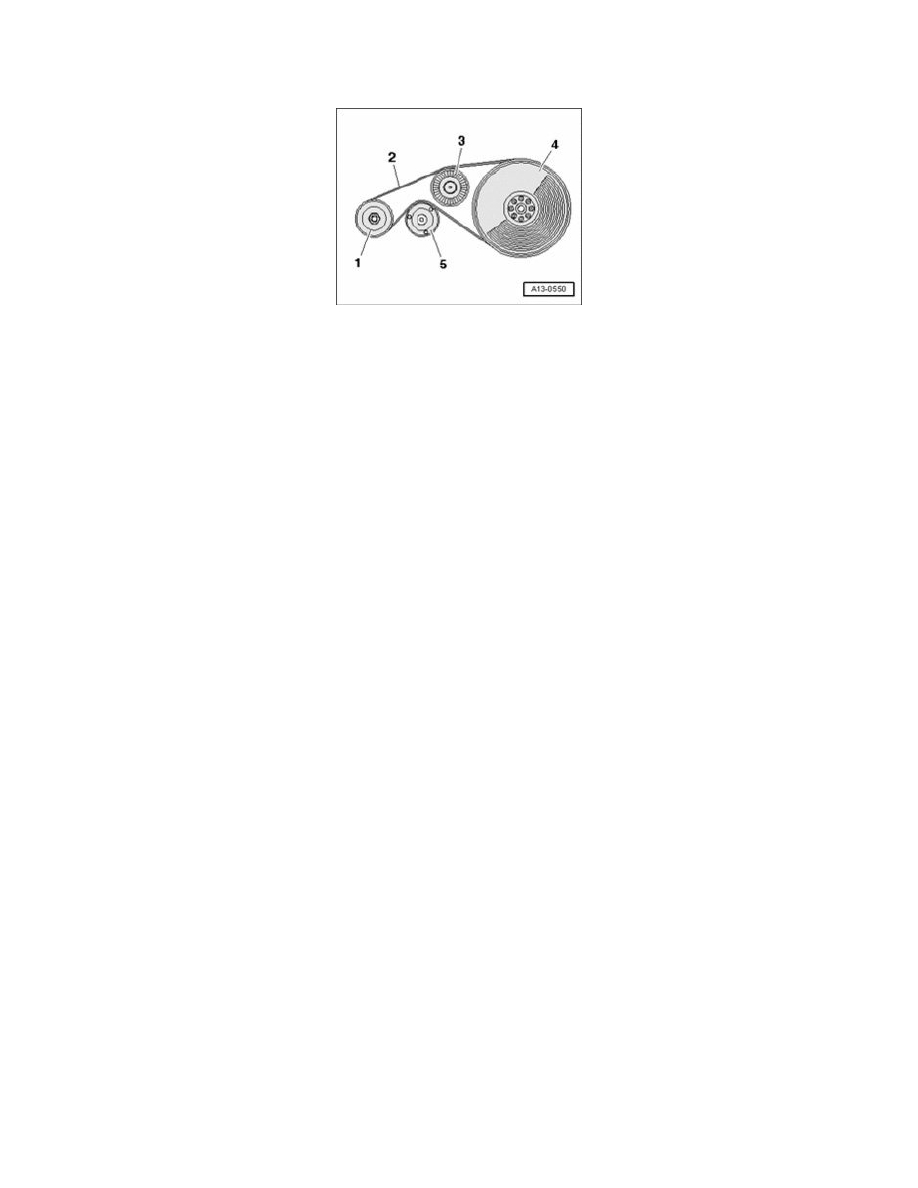

Route ribbed belt - 2 - over belt pulley in specified sequence.
1. Generator
3. Idler roller
4. Vibration damper
5. Tensioning roller
