Head Rest: Service and Repair

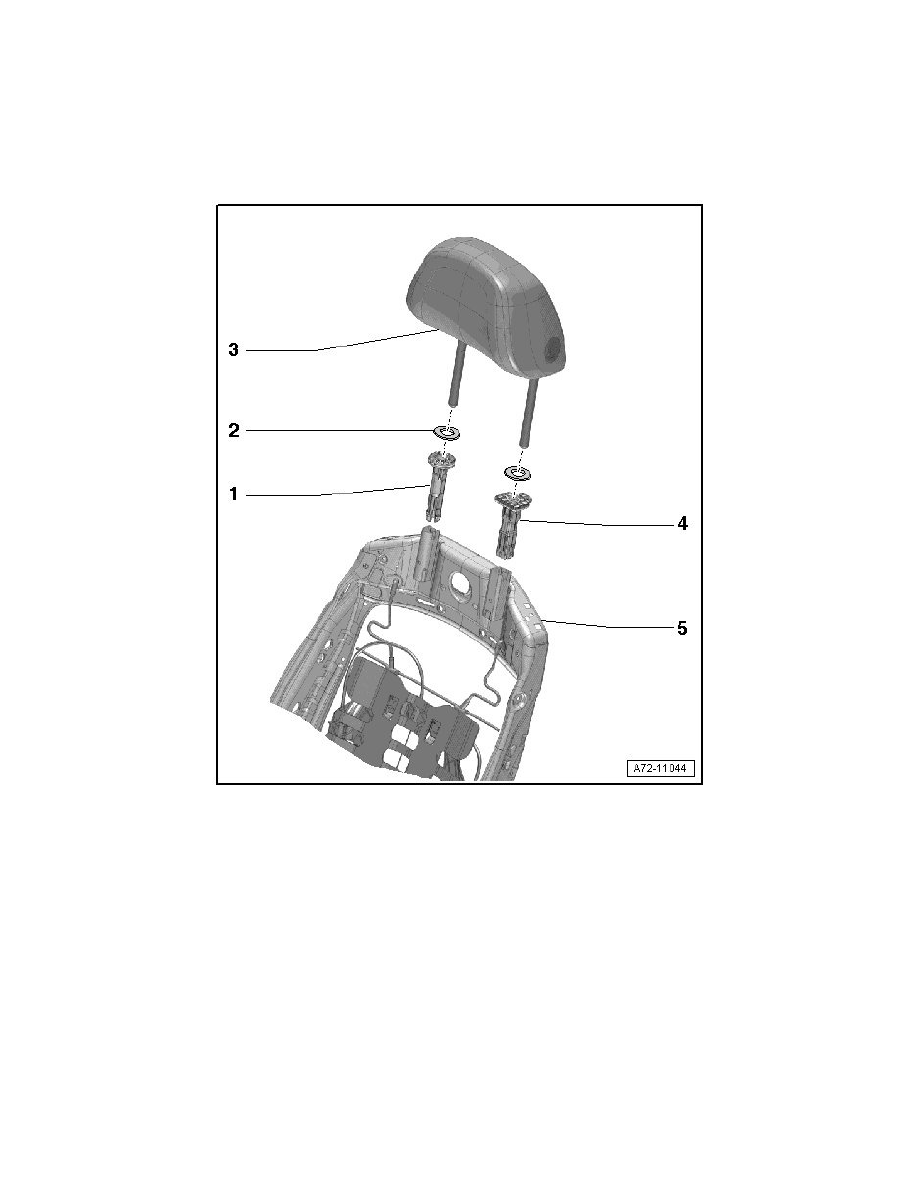

Headrest Assembly Overview
Headrest Assembly Overview
‹› The assembly overview is based on a standard front seat. The headrest is the same on all seat versions.
‹› The illustration does not show the backrest cover and upholstery.
1
Headrest Guide
‹› Without release button
‹› Always installed on right side of backrest
‹› Cannot be removed without destroying
‹› Removing and Installing, refer to => [ Headrest Guide ] See: Service and Repair/Removal and Replacement/Manual Standard Front Seats
2
Cover
‹› Attached to the cover
3
Headrest
‹› Removing and Installing, refer to => [ Headrests with Locking Mechanism ] See: Service and Repair/Removal and Replacement/Manual
Standard Front Seats
4
Headrest Guide
