Q5 Quattro V6-3.2L (CALB) (2009)
Ambient Temperature Sensor / Switch HVAC: Service and Repair
Ambient Air Temperature Sensor
Ambient Air Temperature Sensor
Removing
-

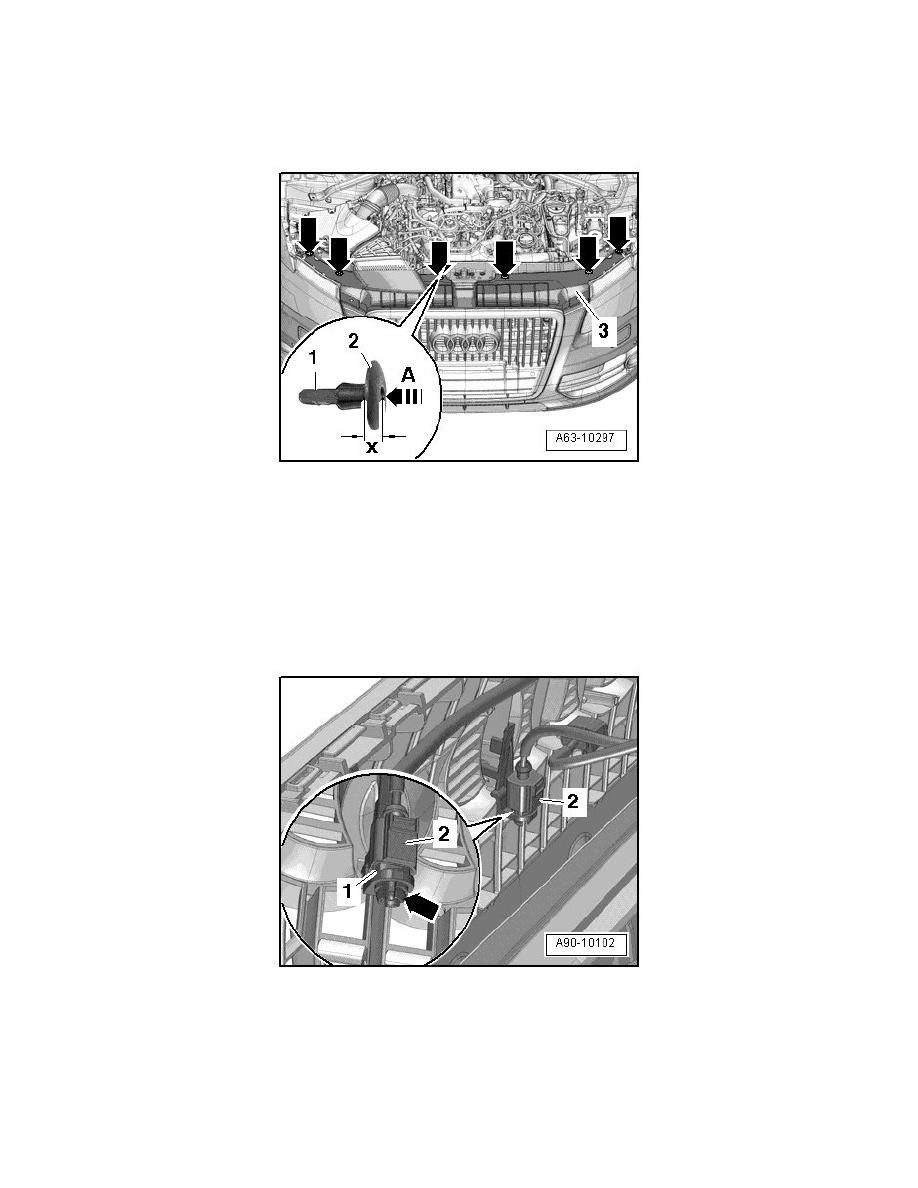

To remove the expanding clips - arrows -, carefully push the pin - 1 - to dimension - x - until it audibly engages into the expanding clip - arrow A
-.
‹› Dimension - x - = 5 mm.
-
Remove the unlocked expanding clip - 2 - and the pin.
-
Lift the cover - 3 - on the lock carrier and engage it on the radiator grille.
-
Disconnect the electrical connector - 2 -.
-
Carefully press the retaining clips together - arrow - and remove the outside air temperature sensor (G17) - item 1 - upward from the bracket.
Installing
Install in reverse order of removal, observing the following:
-
Install the lock carrier cover on the radiator grille.
