Page 2

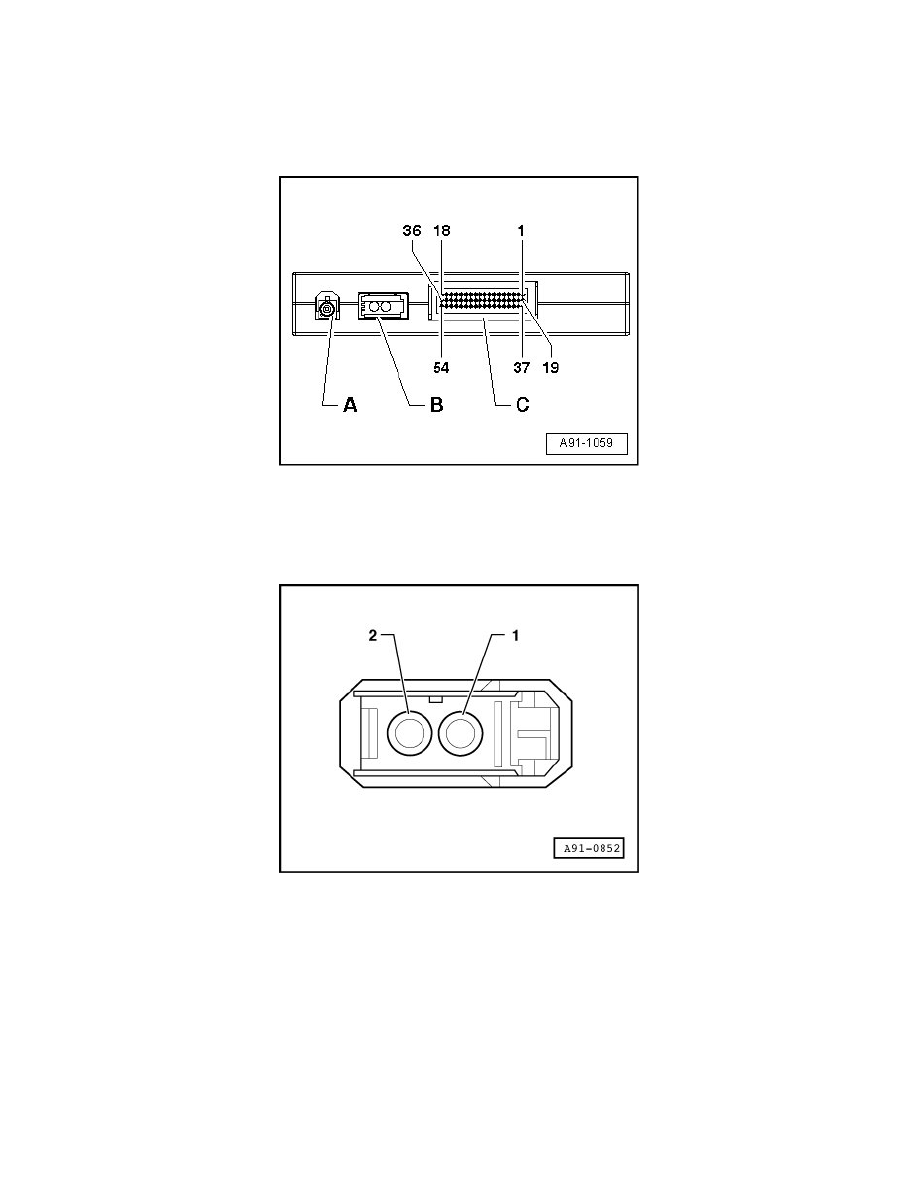

background image

1

Terminal 30

2

Terminal 31

11

Microphone (+)

12

Microphone (-)

14

Ring-break diagnostic wire

37

Terminal 30 to Telephone Baseplate (R126)

39

Terminal 31 to Telephone Baseplate (R126)

41

Terminal 30 to Telephone Baseplate (R126)

42

Microphone output (+) to Telephone Baseplate (R126)

43

Microphone output (-) to Telephone Baseplate (R126)

44

Terminal 31 (screening ground)

45

NF input (+) from Telephone Baseplate (R126)

46

NF input (-) from Telephone Baseplate (R126)

47

SNDREQ signal from Telephone Baseplate (R126)

49

Ser Tx (+) to Telephone Baseplate (R126)

50

Ser Tx (-) to Telephone Baseplate (R126)

51

Ser Rx (+) from Telephone Baseplate (R126)

52

Ser Rx (-) from Telephone Baseplate (R126)
