Q7 Quattro V6-3.6L (BHK) (2007)

Page 1
background image

Hydraulic Control Assembly - Antilock Brakes: Locations

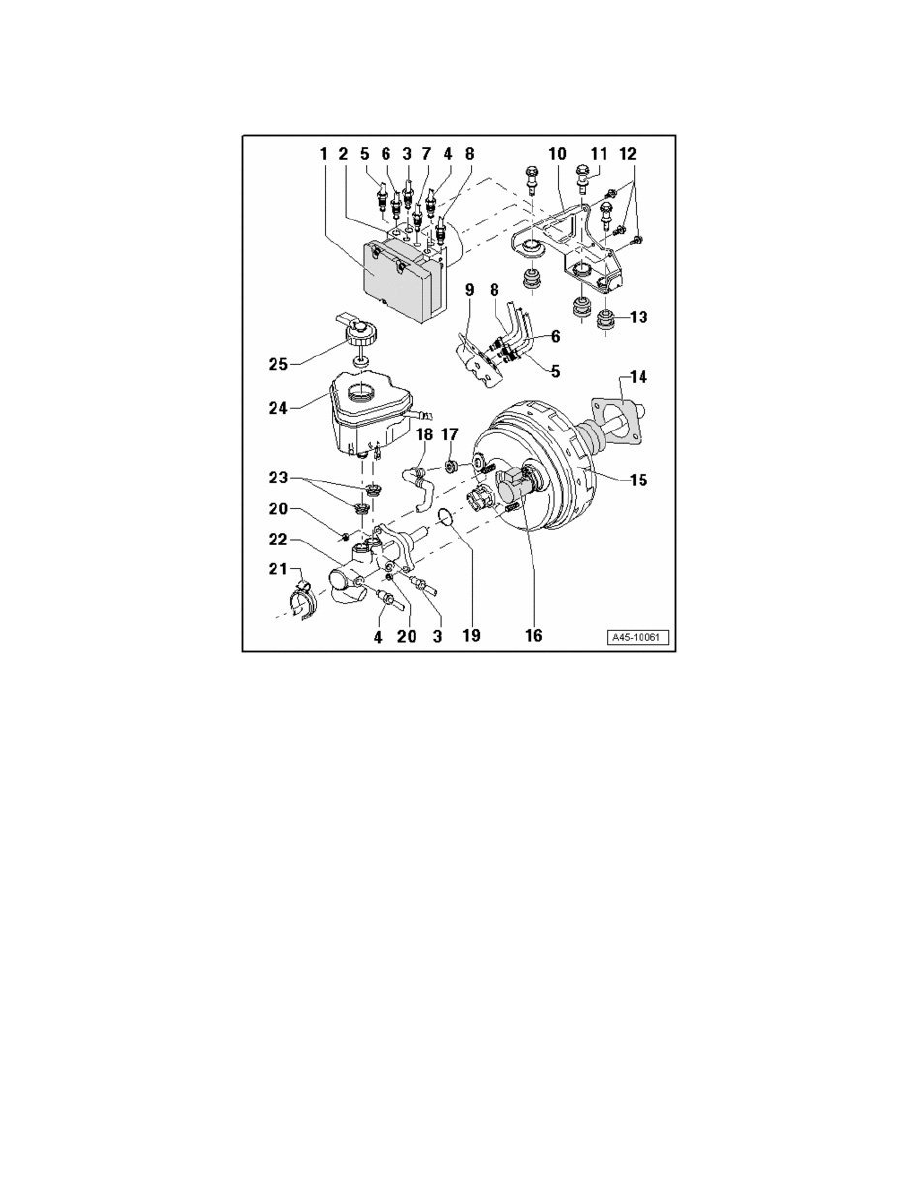

ABS Brake System, Components and Locations

ABS Brake System, Components and Locations

4

ABS Hydraulic Unit (N55) with ABS Control Module (J104)

‹› Component location: In right plenum chamber below engine control module
