Q7 Quattro V6-3.6L (BHK) (2007)
Air Duct: Locations
Air Duct to and From Front Heating A/C Unit

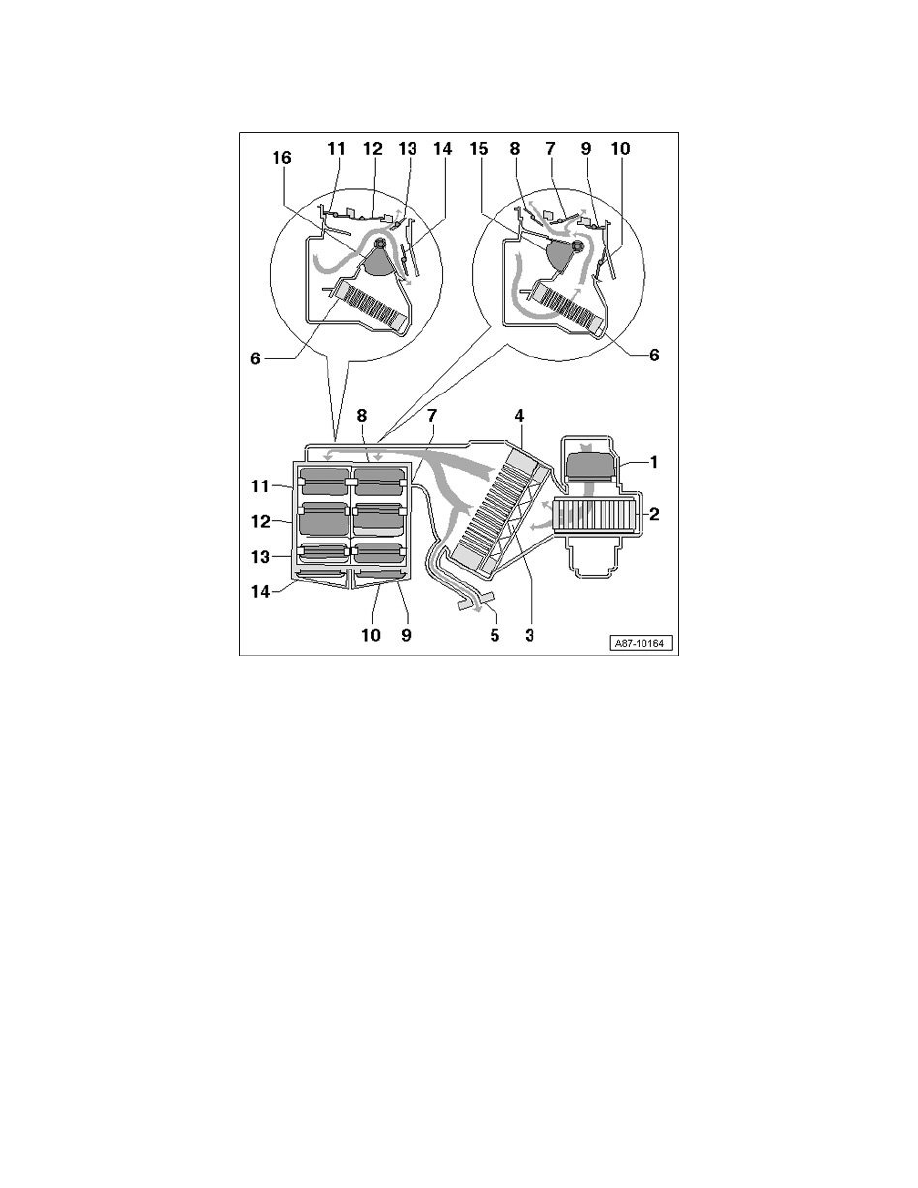

Air Duct To And From Front Heating A/C Unit
1. Air recirculation/fresh air flap
2. Fresh Air Blower V2
3. Air duct to glove compartment cooling system
-
Not present on all vehicles, optional equipment
4. Dust and pollen filter
5. Evaporator
6. Air into glove compartment
7. Air to right instrument panel vent
-
Also to vents in right "B" pillar on vehicles with "Comfort" version A/C system without "rear A/C system".
8. Air to defroster vent of right instrument panel
9. Air to defroster vent of left instrument panel
10. Air to left instrument panel vent
-
Also to vents in left "B" pillar on vehicles with "Comfort" version A/C system without "rear A/C system".
11. Air to center right instrument panel vent
-
Also to right vent for indirect ventilation (via air ducts in instrument panel to front window) on vehicles with "Comfort" version A/C system
-
Also to vent in right rear center console on vehicles with "Comfort" version A/C system without rear A/C system.
12. Air to center left instrument panel vent
-
Also to left vent for indirect ventilation (via air ducts in instrument panel to front window) on vehicles with "Comfort" version A/C system
-
Also to vent in left rear center console on vehicles with "Comfort" version A/C system without rear A/C system.
13. Air to right footwell vents
-
Also to footwell vent under front passengers seat in vehicles without rear A/C system
14. Air to left footwell vent
-
Also to footwell vent under drivers seat in vehicles without rear A/C system
