Q7 Quattro V6-3.6L (BHK) (2007)
/Page-5777001.png)
A/C Coupler O-ring: Service and Repair
O-Ring Seals For Refrigerant Circuit
-
Always use only once, replacing Parts Catalog.
-
Lubricate with refrigerant oil before installing Parts Catalog.
-
Ensure seal fits properly on pipe or notch.
-
Work in clean environment.
NOTE:
-
Install only O-rings that are resistant to refrigerant R134a and corresponding refrigerant oil. These O-ring seals are color-coded to avoid
mistakes (currently "red", "light purple" and "dark purple") Parts Catalog.
-

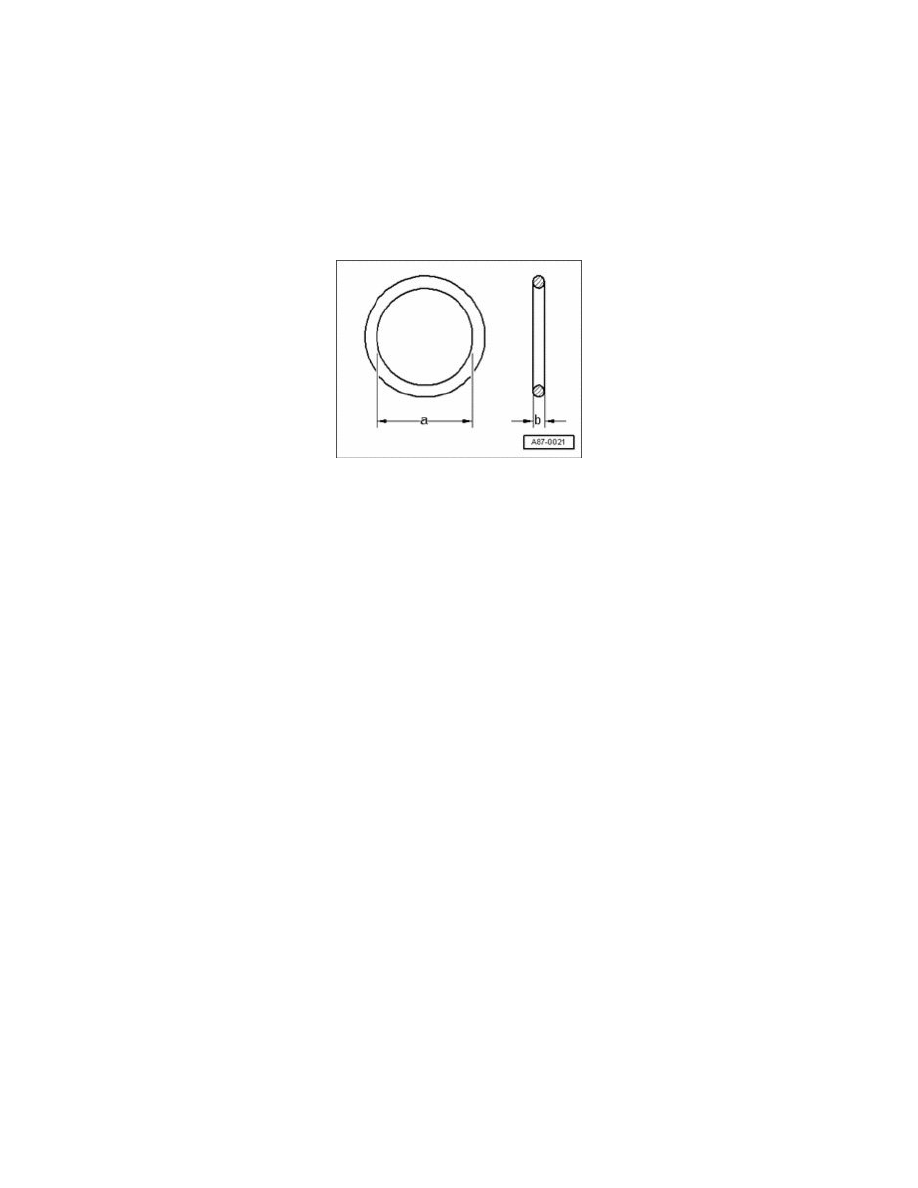

The O-ring dimensions -a- and -b- are different depending on installation location: Parts Catalog
-
In addition to the color-coded O-rings, black O-rings are also used in production for certain connections.
