Q7 Quattro V6-3.6L (BHK) (2007)
-

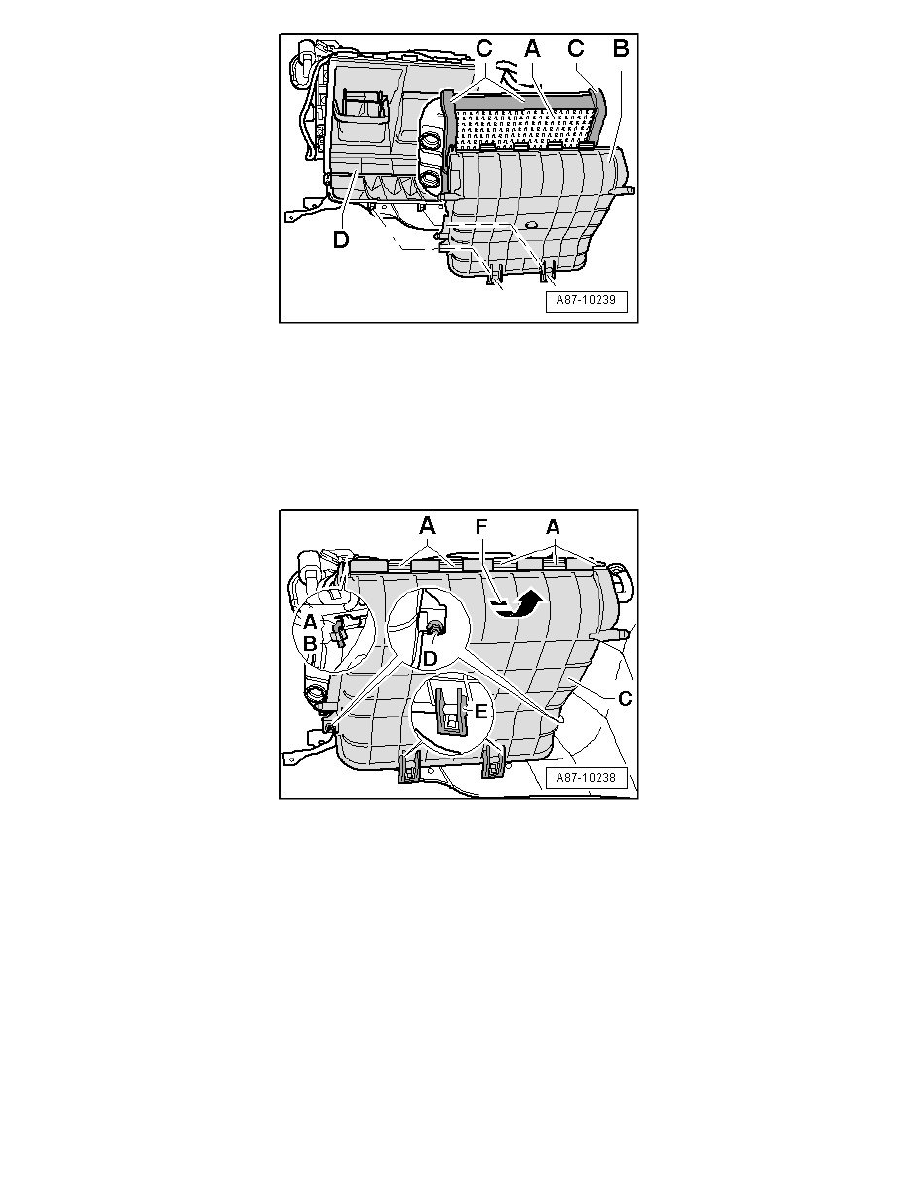

Check foam seals - C - at heater core - A -, they must be glued all around without gaps and must not be damaged.
-
Insert heater core - A - on proper side into lower air duct - B -.
-
Install heater core - A - with lower air duct - B - into heating & A/C unit - D -.
‹› While inserting, make sure that groove/spring connection between heating & A/C unit - D - and lower air guide - B - is joined correctly.
-
Insert retaining pin - A - for connecting lower air duct - C - to heating & A/C unit.
-
Turn retaining pin - A - into locking mechanism - B -
-
Install bolts - D -.
-
Moisten new O-ring seals - D - (included in heater core delivery casing) lightly with coolant.
