Q7 Quattro V6-3.6L (BHK) (2007)
Power Window Switch: Service and Repair
Left Rear Window Switch (In LR Door) E52 / Right Rear Window Switch (In RR Door) E54,
Removing and Installing
Left Rear Window Switch (In LR Door) E52 / Right Rear Window Switch (In RR Door) E54, Removing And Installing
Removing
CAUTION:
-
Switch off all electrical consumers.
-
Switch ignition off and remove ignition key.
-
Remove rear door trim.
-

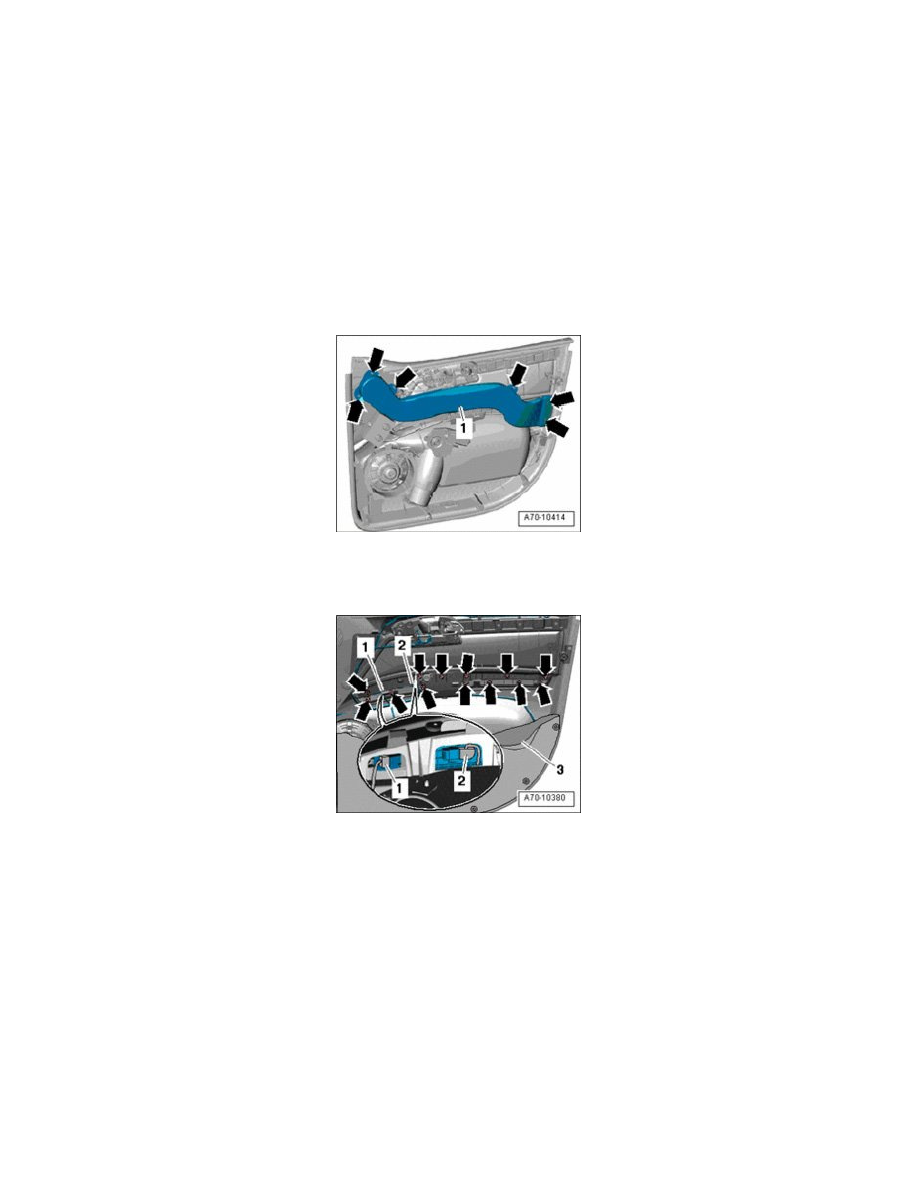

Detach insulating mat from door trim.
-
Carefully release catches - arrows - using a small screwdriver.
-
Pull window switch in rear door - 1 - down out of switch mount.
-
Disconnect connector - 2 -.
Installing
Install in reverse order, observing the following:
-
Press rear window switch in rear door into switch mount until catches engage.
-
Install rear door trim.
