Grille: Service and Repair – Audi S4 V8-4.2L (BHF) (2004)

Grille: Service and Repair

Radiator Grill, Removing And Installing

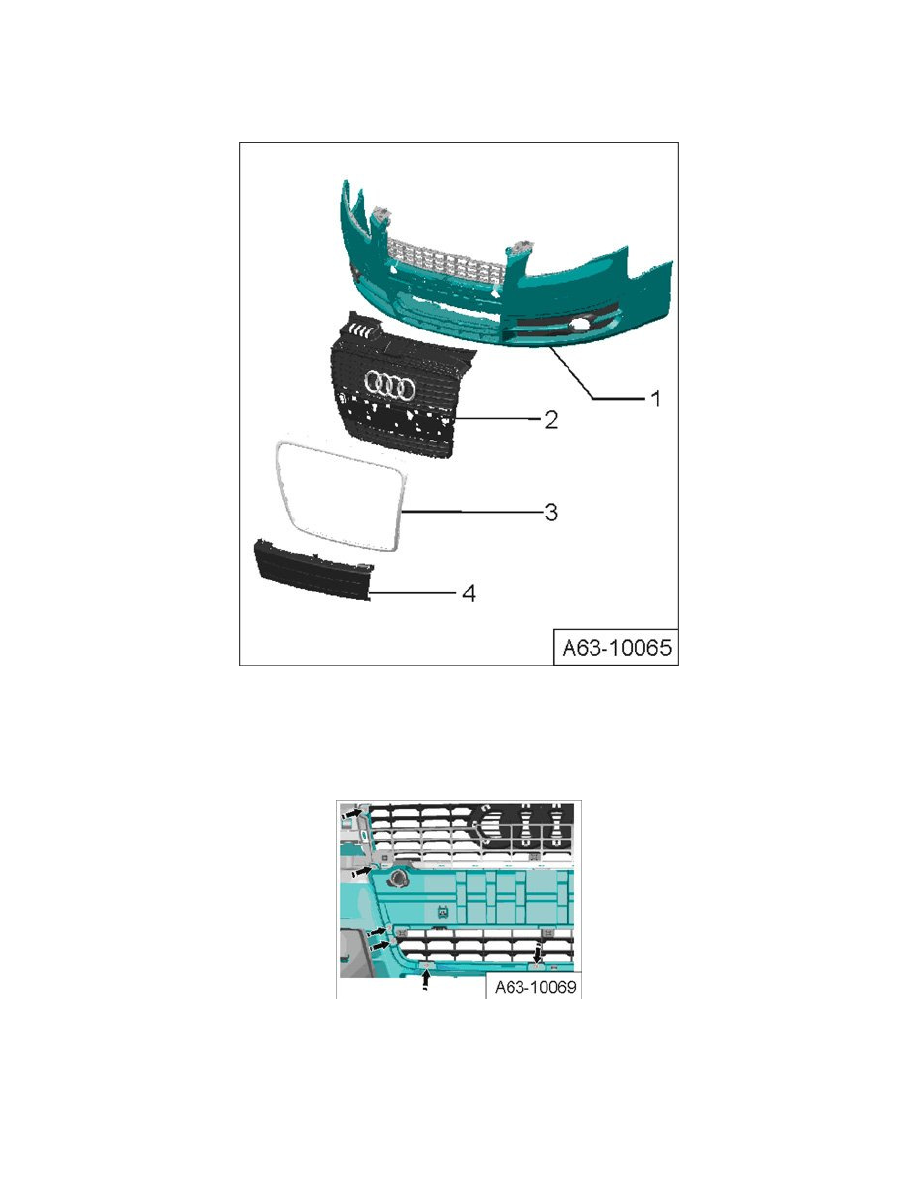

Assembly overview

1

-

Bumper cover

2

-

Radiator grille
-

Bumper cover removed

3

-

Trim for radiator grille

4

-

License plate holder
-

To disassemble from rear side, unclip from radiator grille

Removing radiator grille

-

Bumper cover removed

-

Unscrew bolts - arrows - around edge and pull radiator grille from bumper cover.

-

When installing, tighten bolts to 1.5 Nm.
