Air Duct: Locations

Air Guides In Vehicle Interior

NOTE:

-

The passenger compartment is vented by way of two air extraction vents (on left and right of luggage compartment in area of bumper).

-

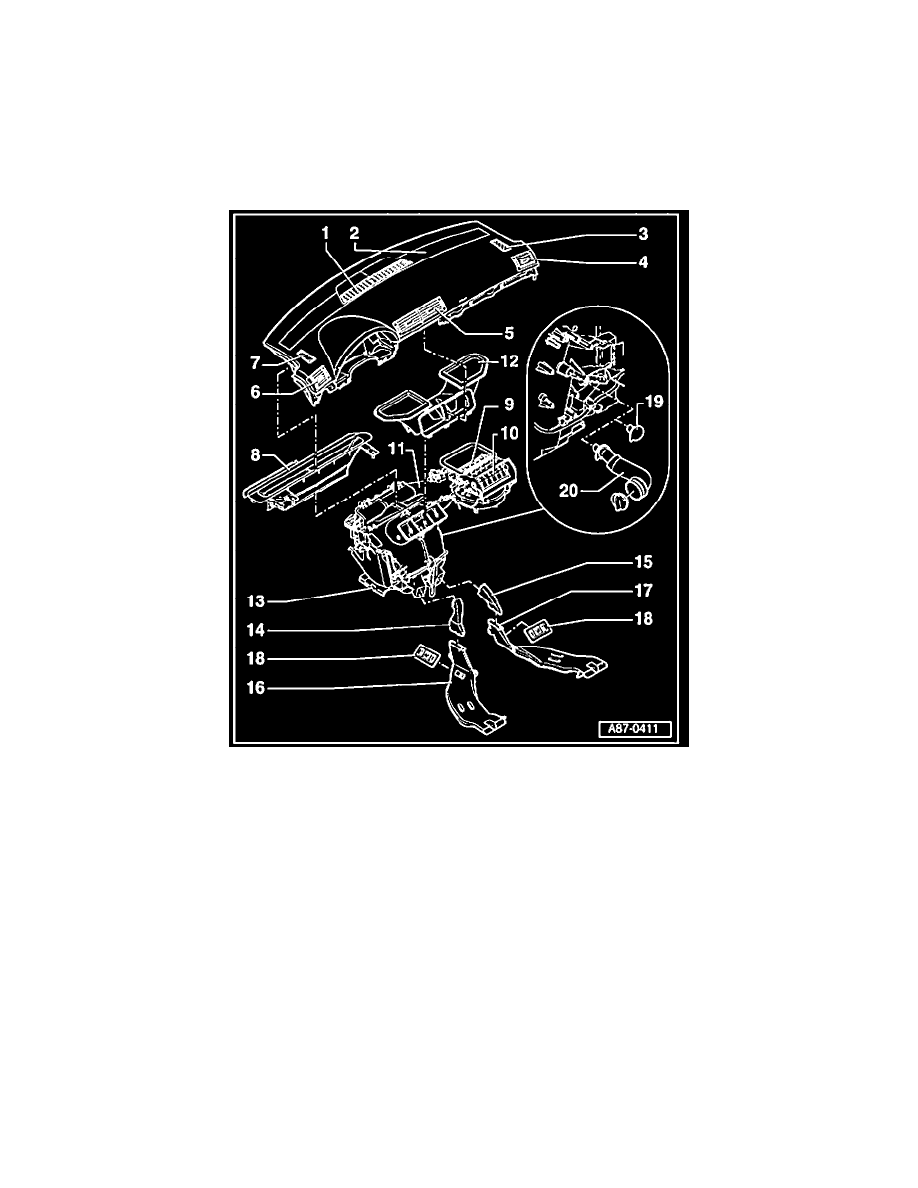

The following illustration shows a instrument panel of the type installed in a Saloon or Avant up to VIN 399999 in Model Year 2005. The shape
of the instrument panel on a Cabrio and for a Saloon or Avant as of VIN 400000 in Model Year 2005 (gradual introduction for the Cabrio in week
46/04 without prior specification of any particular VIN) differs slightly from this illustration.

1.  Defroster outlet vent

-

For windshield

-

Crushing of intermediate piece between air conditioner and air guide in instrument panel on installing instrument panel will result in irregular
or inadequate air routing to windshield

-

Different versions for vehicles up to VIN 399999 and as of VIN 400000 in Model Year 2005 (different versions of Sunlight Photo Sensor
G107 for Saloon and Avant; gradual introduction for the Cabrio in week 46/04 without prior specification of any particular VIN)

2. Instrument panel

-

Different versions for Saloon or Avant on vehicles up to VIN 399999 and as of VIN 400000 in Model Year 2005 (Saloon and Avant; gradual
introduction for the Cabrio in week 46/04 without prior specification of any particular VIN)

-

With air guides to defroster vents and instrument panel vents on "drivers and front passengers side"

3. Defroster outlet vent

-

Passengers side window

4. Instrument panel vent

-

Passengers side

5. Instrument panel vent

-

Center

6. Instrument panel vent
