Drive Belt: Locations

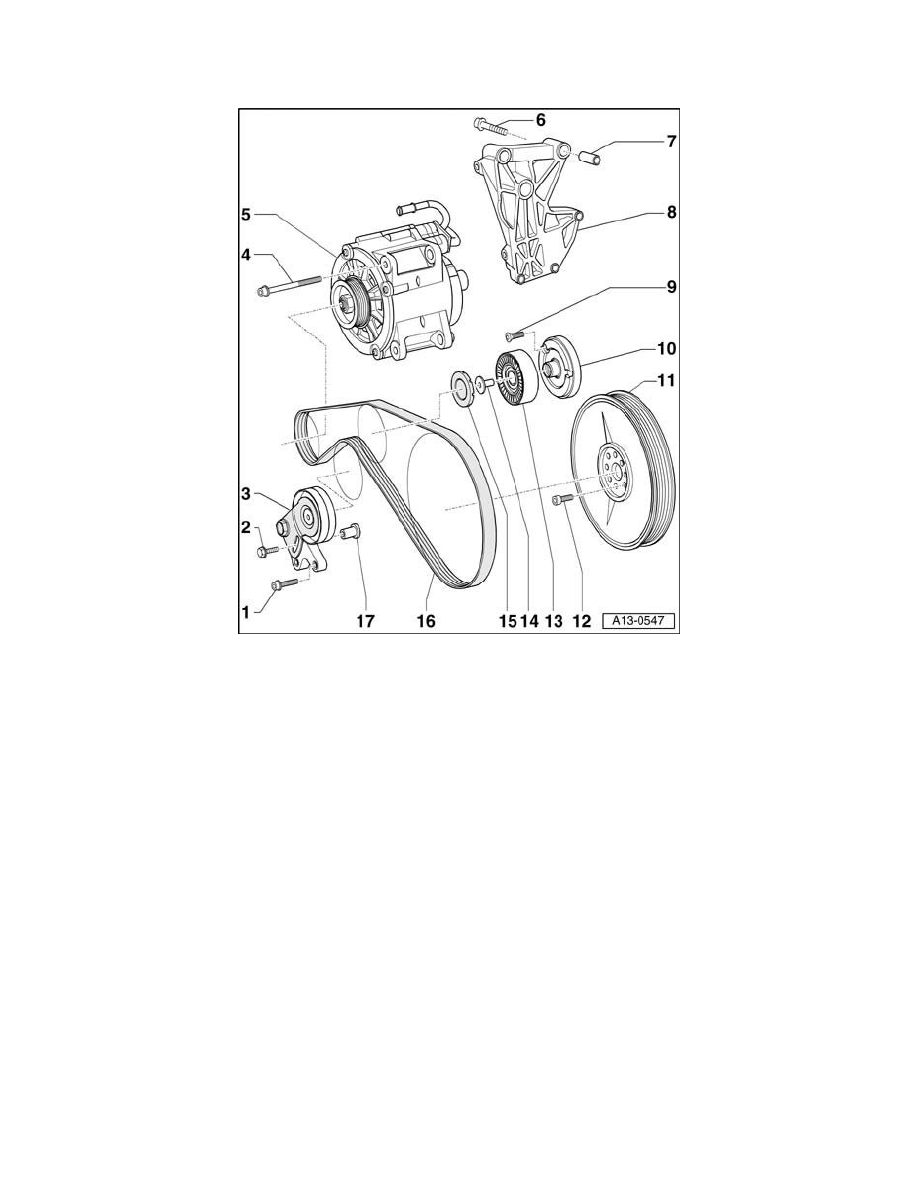

Ribbed belt drive for generator, component overview

1 - 22 Nm

2 - 22 Nm

3 - Ribbed belt tensioner

4 - 22 Nm

5 - Generator

6 - M8 - 22 Nm; M10 - 46 Nm

7 - Alignment bushing

^

For generator bracket

^

2 pieces

8 - Generator bracket

9 - 10 Nm

10 - Idler roller holder

11 - Vibration damper

12 - 22 Nm plus an additional 45 degrees (1/8 turn)

^

Replace
