Drive Belt: Locations

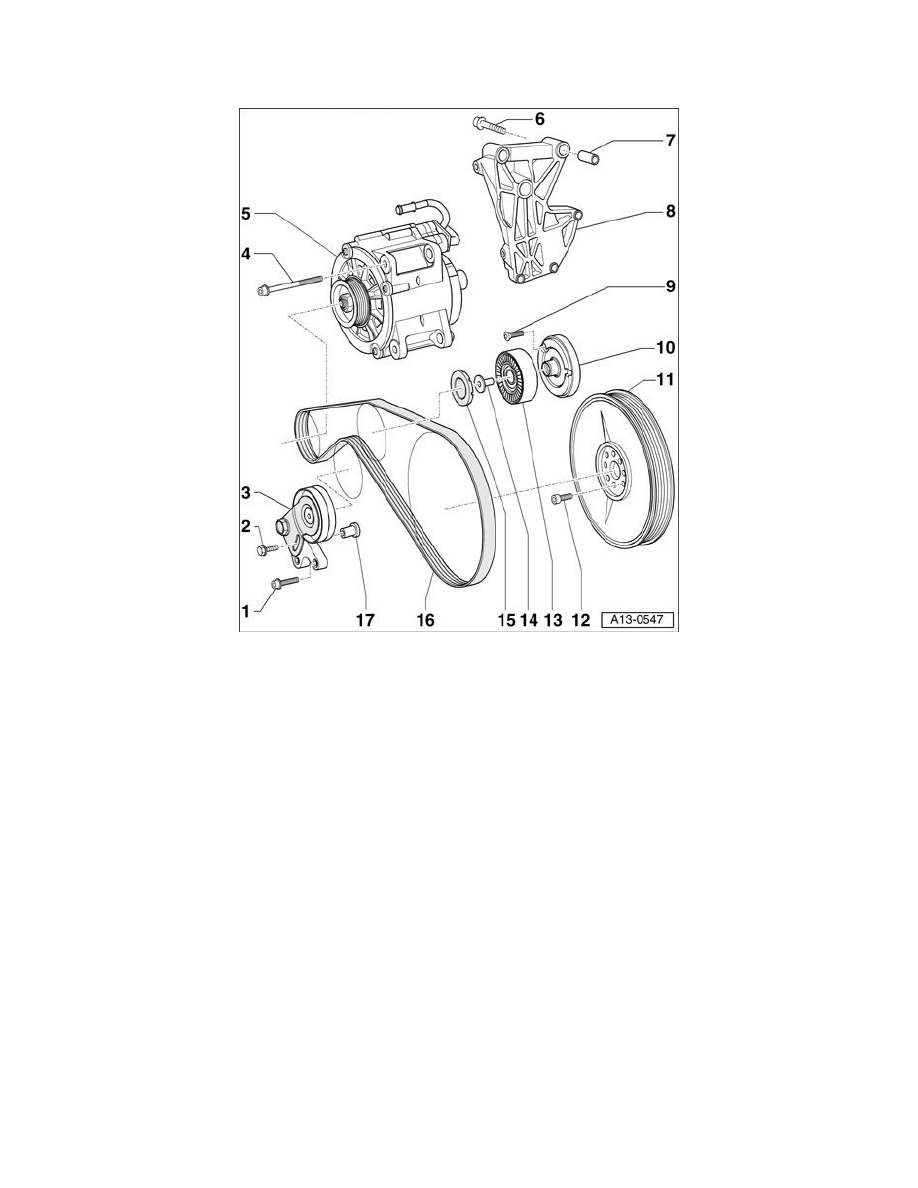

Ribbed belt drive, component overview

1 -

22 Nm

2 -

22 Nm

3 -

Tensioning device for ribbed belt

4 -

22 Nm

5 -

Generator

6 -

M8, 22 Nm; M10, 46 Nm

7 -

Alignment bushing

^

For generator bracket

^

2 pieces

8 -

Generator bracket

9 -

10 Nm

10 -

Idler roller holder

11 -

Vibration damper

12 -

Bolt

^

Replace

^

Only use original equipment bolts, Bolt class 12.9

^

Tightening order
