1 Series E81 120i (N46T) 3-door

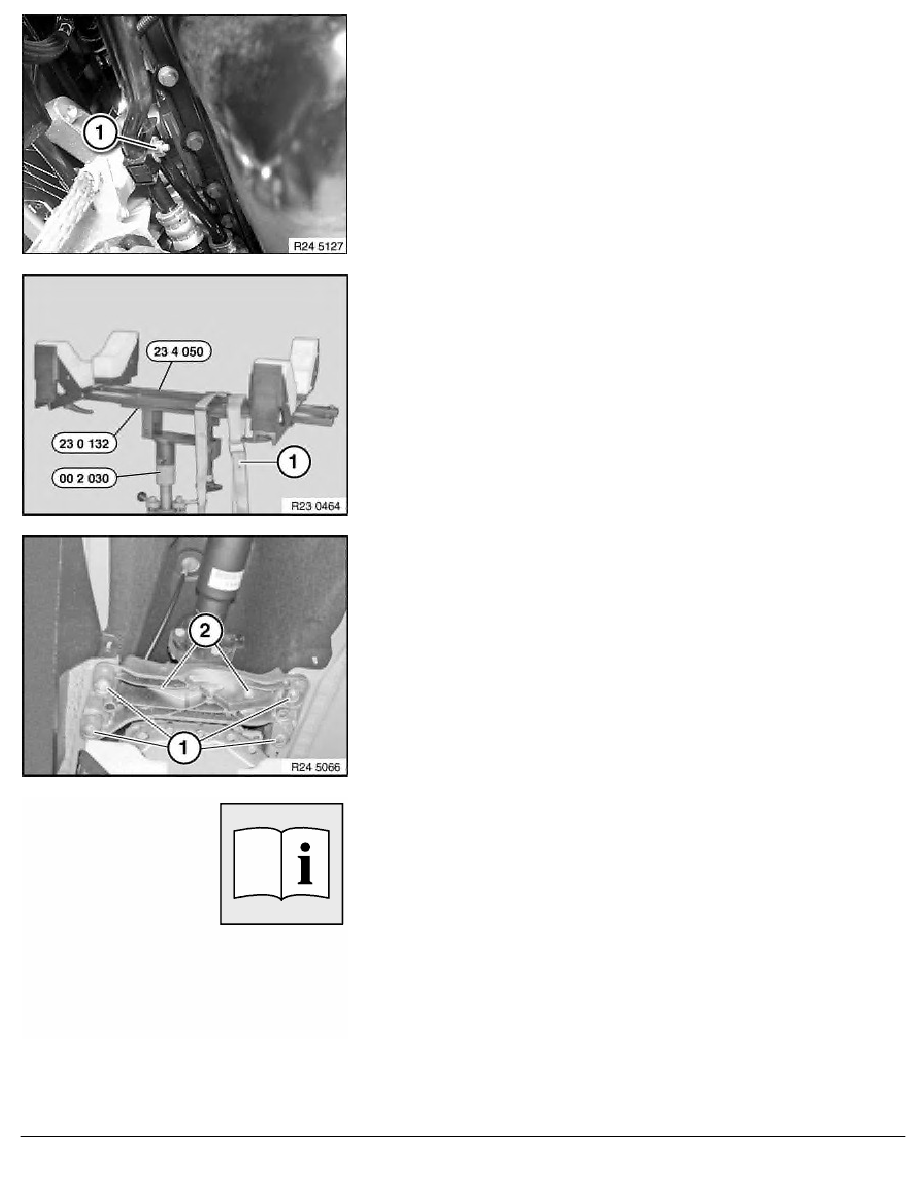

Slacken nut (1).
Detach holder from transmission oil lines on engine support arm.
Supporting transmission:
Support transmission with special tools 23 4 050 , 23 0 132
and 00 2 030 .
Secure transmission with tensioning strap (1).
Tasks are described in Transmission bracket.
After completion of work, check transmission oil level.
Unfasten screws (1) and nuts (2).
Remove transmission cross-member.
Tightening torque 24 17 1AZ/2AZ
.
-
Remove propeller shaft from transmission.
-
Release centre bearing.
-
Tie propeller shaft to one side.
Tasks are described in Removing propeller shaft.
RA Removing and installing automatic transmission (GA6L45R) N45T, N46T
