1 Series E87 120d (N47) 5-door
51 43 070
Removing and installing/replacing side trim
panel, footwell, on A-pillar, left
Necessary preliminary tasks:
•
Remove front entrance cover strip (inside)
•
Remove trim panel for pedal assembly.

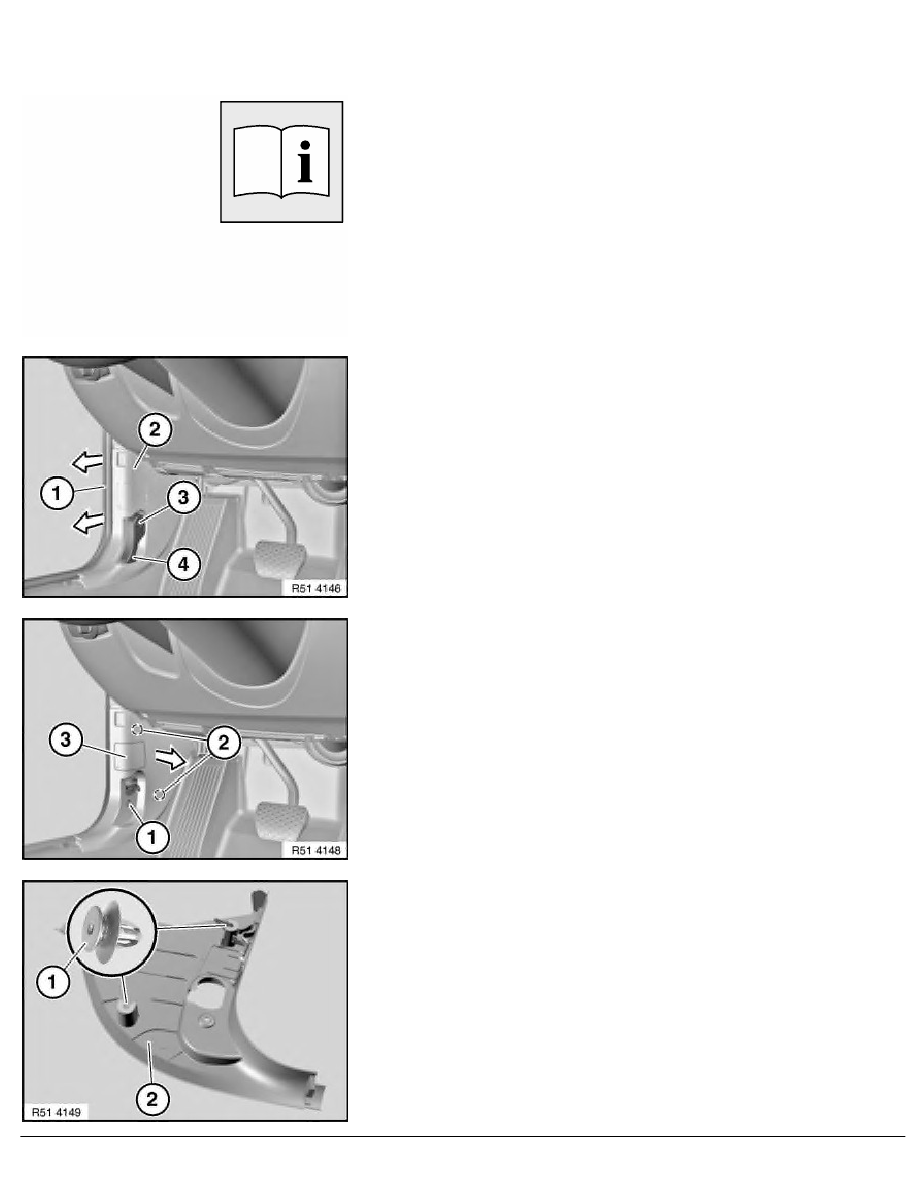

Detach mucket (1) in area of side trim panel (2).
Release screw (3).
Remove hood/bonnet release lever (4) from side trim panel (2).
Release screw (1).
Unclip side trim panel (3) in direction of arrow from retaining
points (2).
If necessary, disconnect associated plug connection and remove
side trim panel (3).
Installation:
If necessary, lever out clips (1) remaining in bore.
If necessary, replace faulty clips (1).
Position side trim panel (2) preinstalled with clips (1) on
associated bores and clip into place.
Replacement:
Remove switch for unlocking rear lid.
