1 Series E87 120d (N47) 5-door
51 45 ...
Replacing side cover on instrument panel
Special tools required:
•
00 9 317
Necessary preliminary tasks:
•
Pull off mucket from front door in covered area

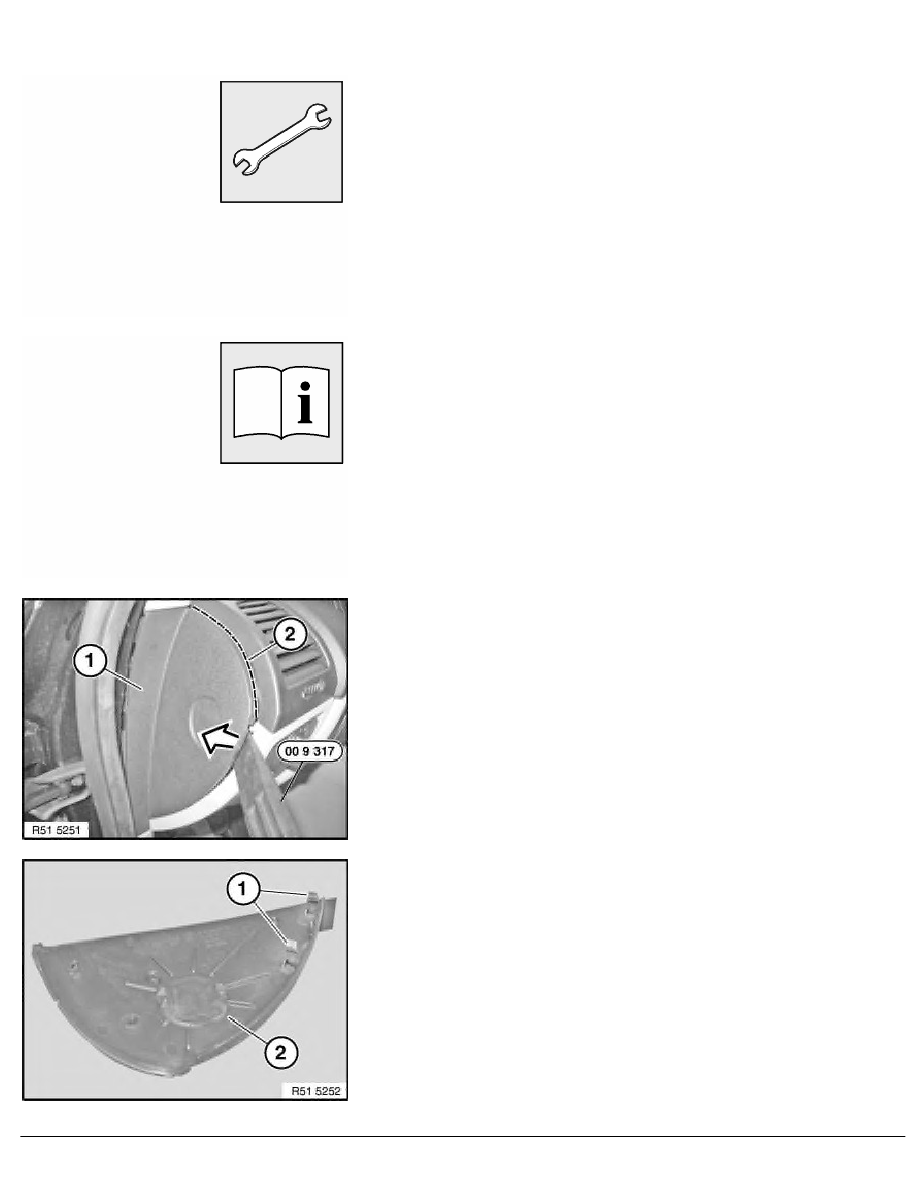

Unclip cover (1) with special tool 00 9 317 in direction of arrow
from instrument panel trim.
If necessary unfasten plug connection.
Installation:
Make sure sealing lip (2) is correctly seated in dashed area.
Retaining clips (1) of cover (2) must not be damaged.
RA Replacing side cover on instrument panel
