3 Series E36 318i (M40) SAL
12 14 155

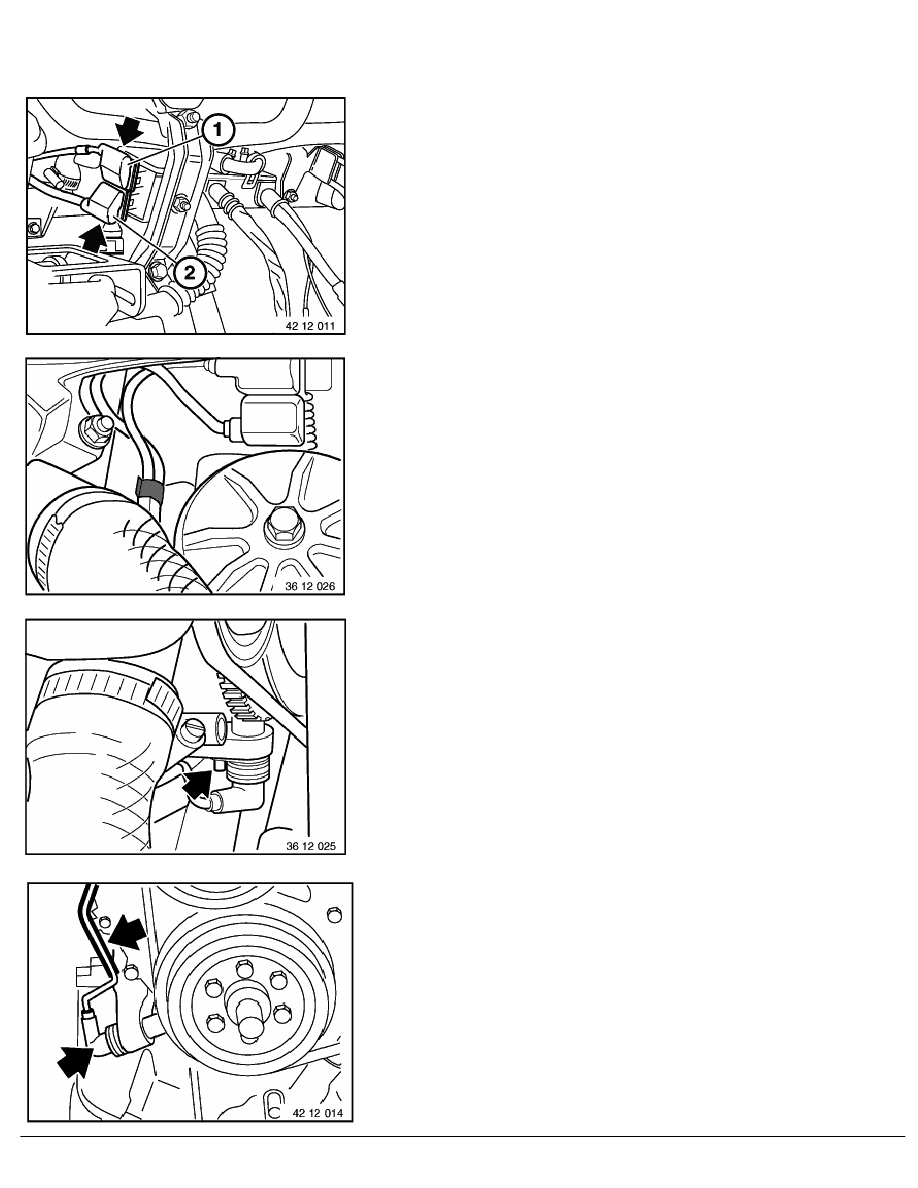

Replacing pulse sensor on vibration damper
(M40)
Removing fan coupling with fan and fan shroud,
Disconnect plug-in connections:
1.
Impulse sensor for cylinder recognition
2.
Impulse sensor on the vibration damper
Unclip electric cable guide in holder.
Release screw on pulse generator.
Installation:
Clip electric wire in the guide securely to prevent the wire from
rubbing on drive belt.
RA Replacing pulse sensor on vibration damper (M40)
