3 Series E36 318tds (M41) TOUR

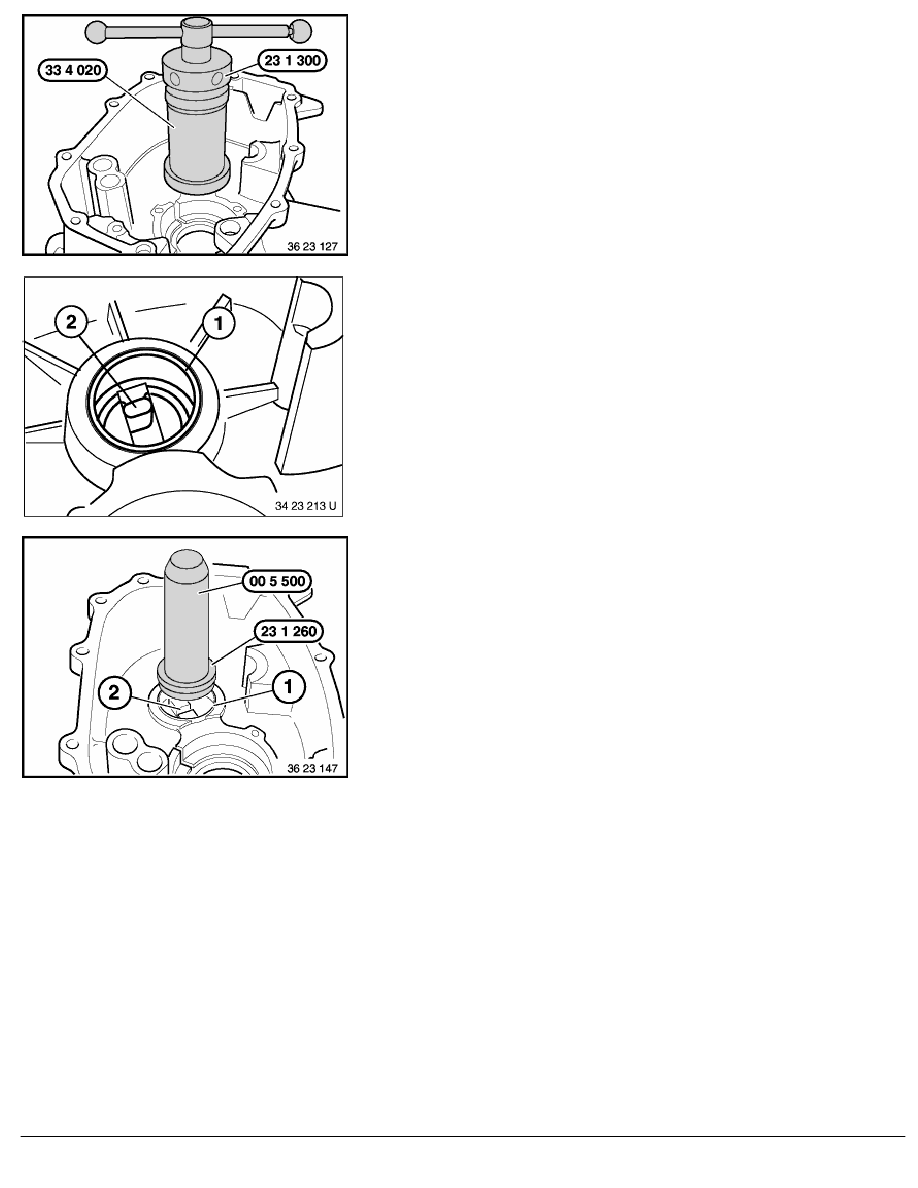

Apply special tool 33 4 020.
Screw special tool 23 1 300 on to 23 1 280.
Pull out bearing shell.
Install new bearing shell (1) with recess on bearing shell aligned
with the locking device (2) in the case.
Drive bearing shell (1) into limit position with special tool
23 1 260 / 00 5 500.
RA Replacing bearings on all transmission shafts (S5D 200G/ E36 M41)
