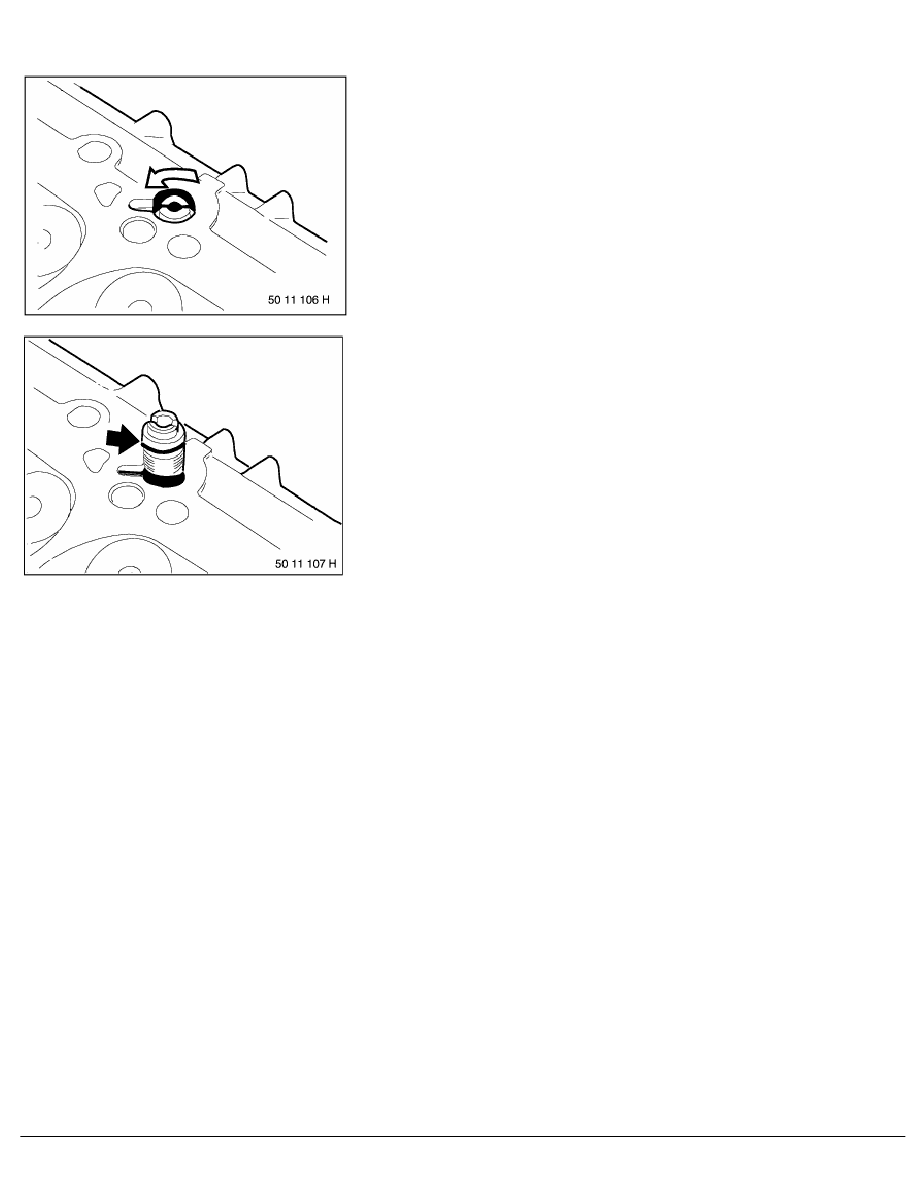

Remove check valve (M50)

Unscrew valve.

Installation:

Replace O - ring.

RA  Remove check valve (M50)

BMW AG - TIS

08.02.2013  06:22

Issue status (12/2007) Valid only until next DVD is issued
