3 Series E36 325i (M50) CONVER

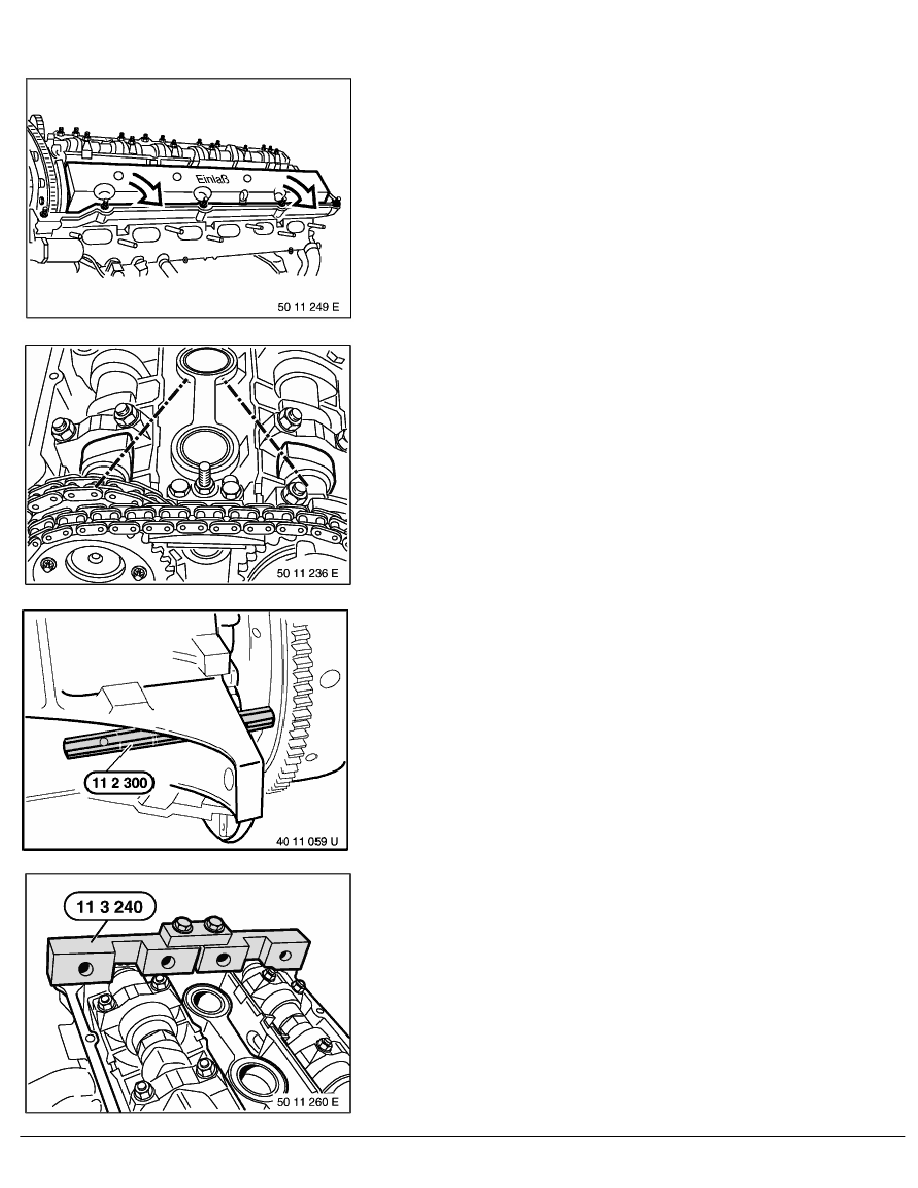

If applicable for other work on cylinder head later, unscrew thrust
washer bolts.
Remove thrust washer.
For tightening torque, refer to Technical Data
If applicable, remove sensor gear.
Unscrew secondary tensioner.
Unscrew chain guide.
RA Removing VANOS control unit (M50 VANOS)
