3 Series E36 325tds (M51) TOUR
12 41 020

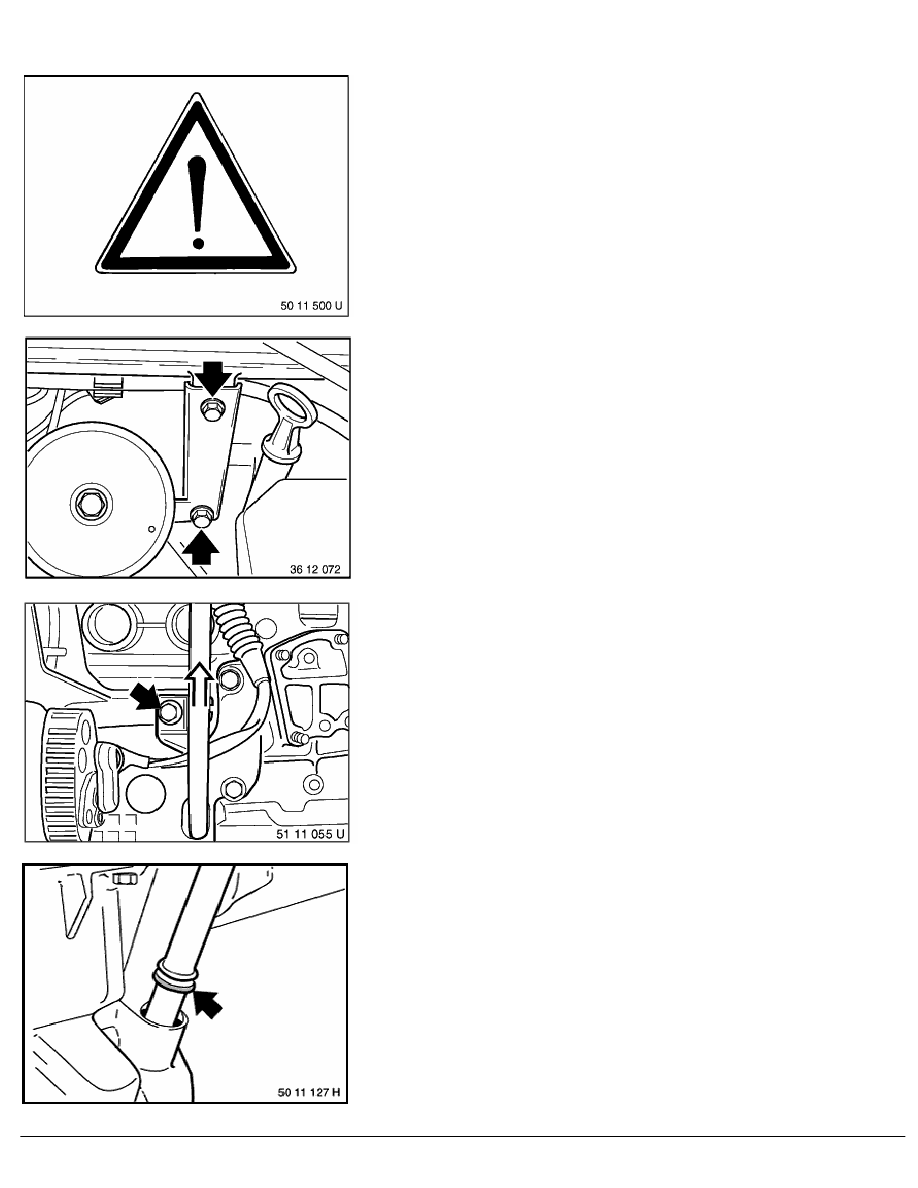

Starter - Remove, install/replace (M51)
General Data, refer to Page 12 00 ...
Read fault memory.
Disconnect battery earth lead.
Unscrew screw of rear support for manifold.
Unfasten screw on oil dipstick.
Caution!
If engine oil level is high, oil may escape from the oil dipstick
bore.
Remove oil dipstick.
Installation:
Check O-ring, replacing if necessary.
RA Starter - Remove, install/replace (M51)
BMW AG - TIS
08.02.2013 19:22
Issue status (12/2007) Valid only until next DVD is issued
Copyright
Page - 1 -
