3 Series E36 328i (M52) COUPE

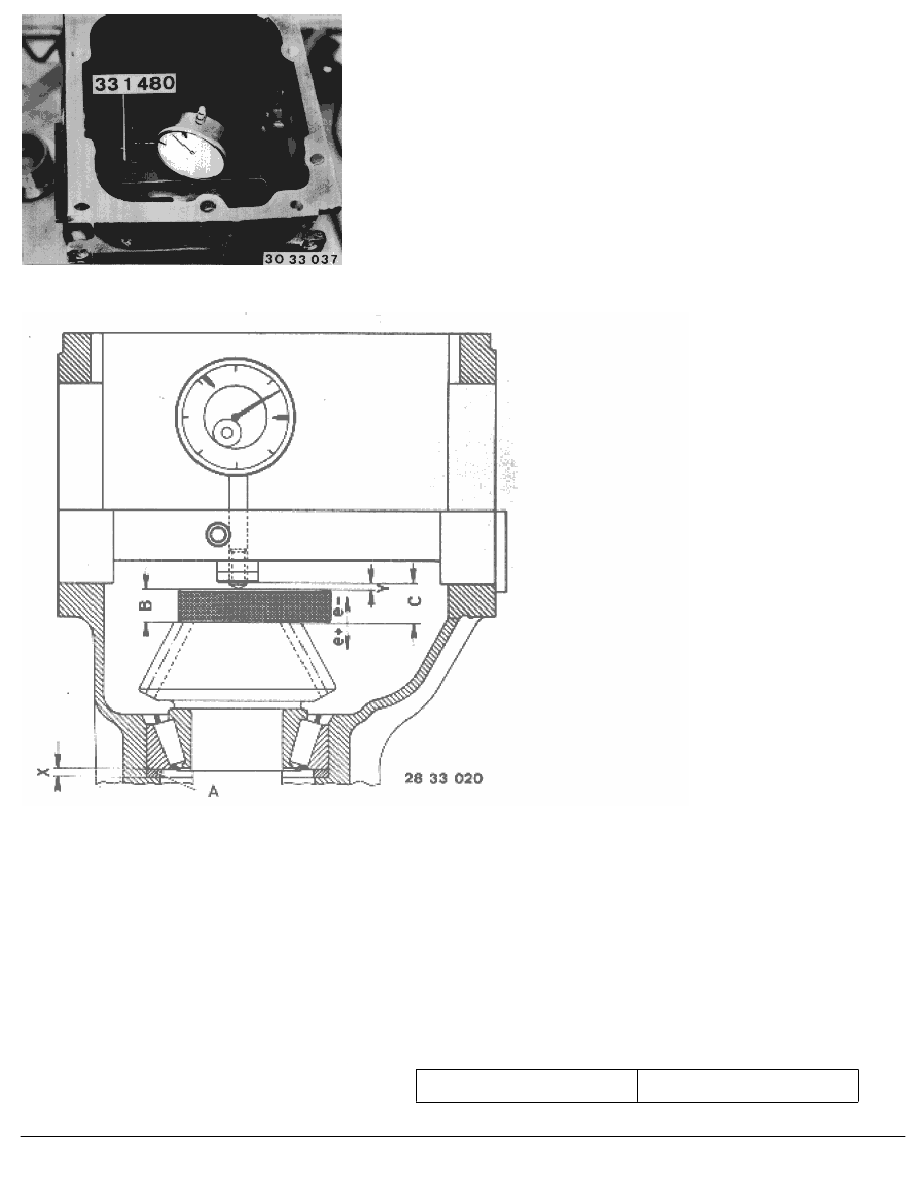

Take measurement with special tool 33 1 480.
To do so, place special tool 33 1 482 on drive pinion and insert
special tool 33 1 481 in housing.
Determine value Y.
Basic distance C = 9.02 mm
Gauge thickness B = 7.00 mm
Examples for calculating the correct thickness of disc (x)
Example I:
C
9.02 mm
e +
0.10 mm
