3 Series E36 M3 (S52) SAL
34 00 048
Bleeding brake system with ABS/ASC+T
Note:
Conform with filling and bleeding procedures when
replacing or repairing the
-
Tandem-brake master cylinder
-
Hydraulic unit ABS/ASC+T
-
Accumulator ASC+T
-
and components which are installed between these
units.
The procedures of "Bleeding brakes with ABS",
refer to 34 00 047
are also applicable for ASC+T vehicles when performing other
jobs on the braking system (e.g. replacing brake calipers).
Caution!
Note "General Data",
refer to 34 00 ...

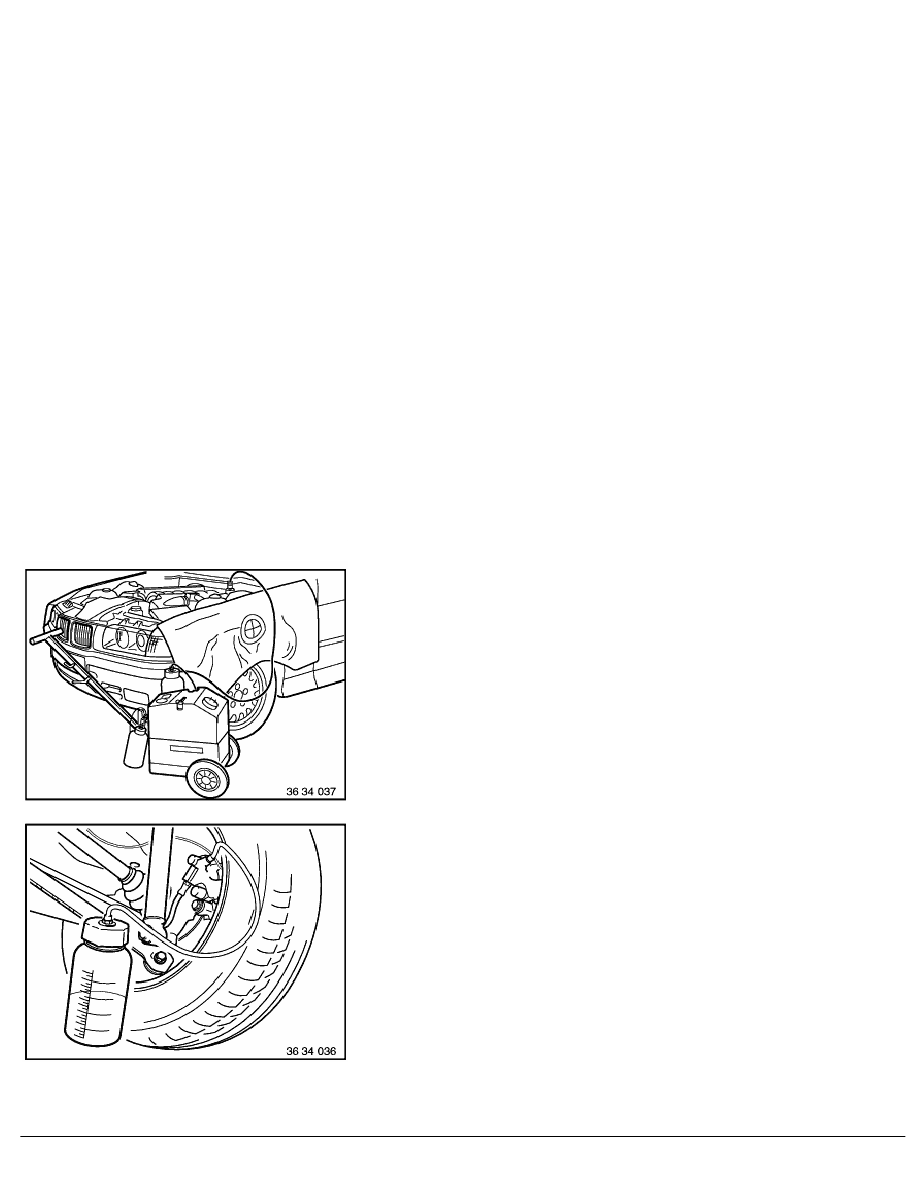

1. Connect bleeder on expansion tank
Note:
Check relevant Owner's Manual for each device.
Charging pressure should not exceed 2 bar.
2. Bleed braking system in advance
Connect bleeder hose with bottle to rear-right brake caliper.
Open breather valve and flush brake system, flush volume approx.
50 cm
3
(brake fluid must emerge without bubbles).
Close bleeder valve.
Bleed brakes in the same manner at left rear, right front and left
front.
