3 Series E46 330Ci (M54) CONVER

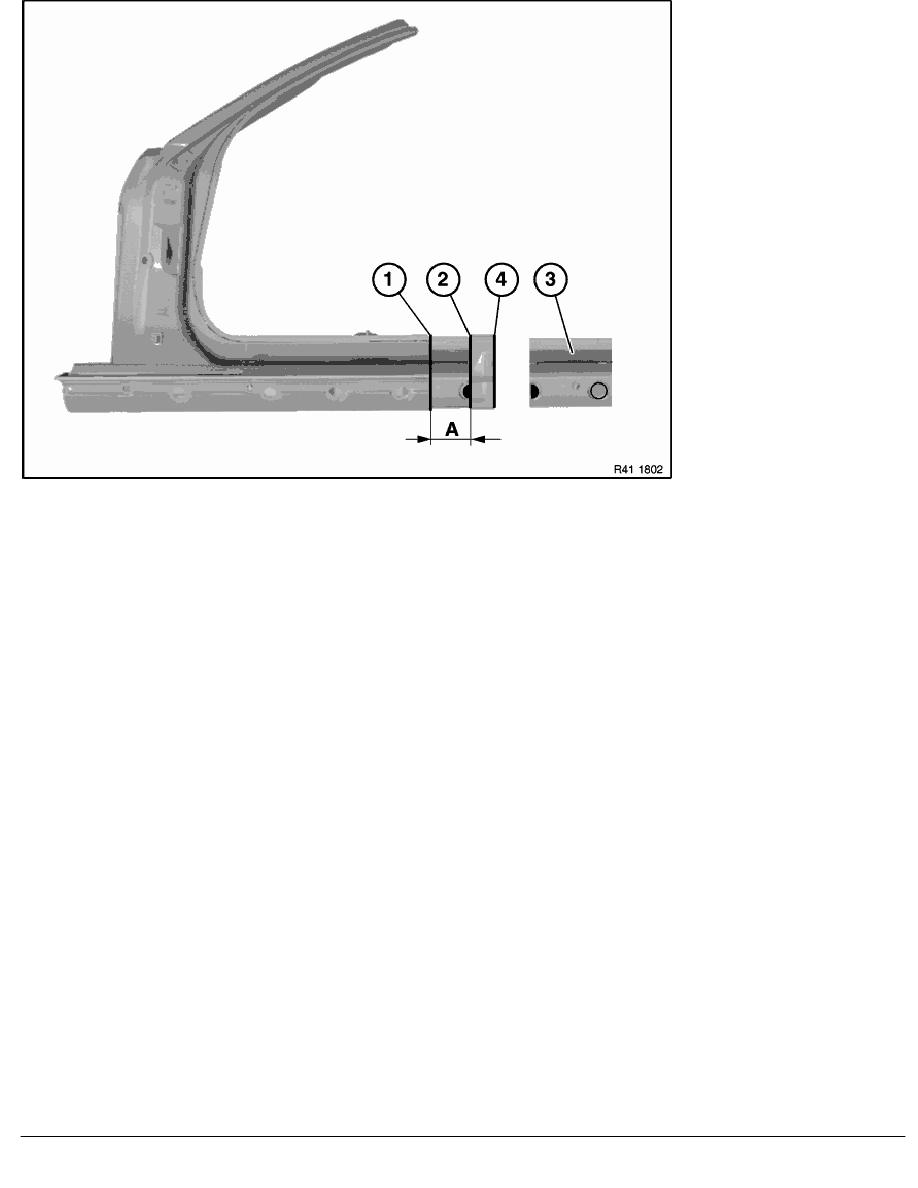

Mark cover for side member on new side frame part according to measurement A and cut.
Measurement A = approx. 80 mm from above-mentioned cutting line (2) of outer entrance.
Mark outer entrance after above-mentioned cutting line (2) of outer entrance and cut.
Cut section (3) out of outer entrance behind cutting line (2).
Mark above-mentioned cutting line (4) on inner entrance and cut.
Clean all connecting points on new part and body.
RA Replacing door pillar outer and inner sections at front left (partial replacemen
