3 Series E46 M3 CSL (S54) COUPE
13 71 000
Removing and installing intake filter housing
(S54)
Turn off ignition.

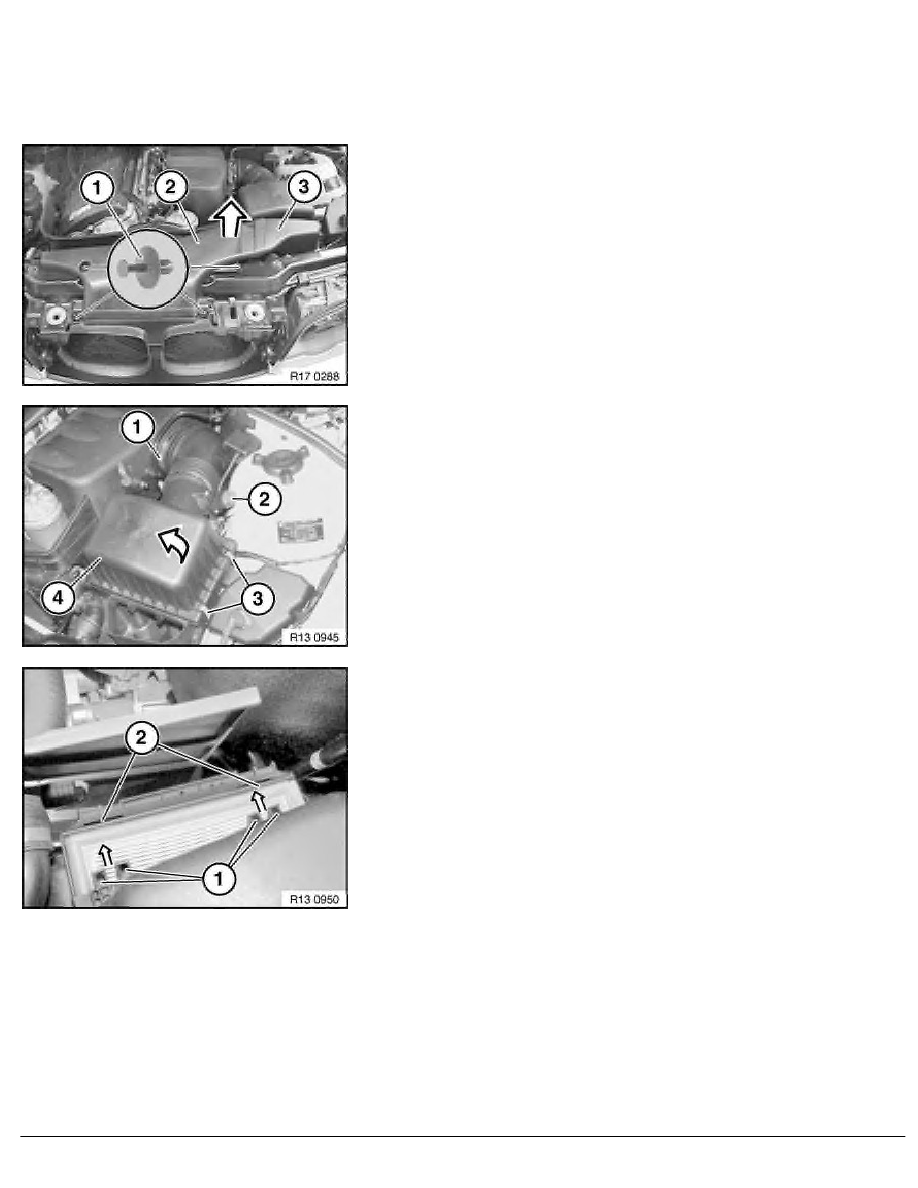

Lever out expansion rivets (1).
Remove intake hood (2) with intake pipe (3) towards top.
Release hose clamp (1).
Unlock plug (2) and detach.
Open retainer (3).
Rotate upper section of intake filter housing (4) towards top left.
Detach intake hose from intake air manifold.
Remove upper section of intake filter housing (4).
Installation:

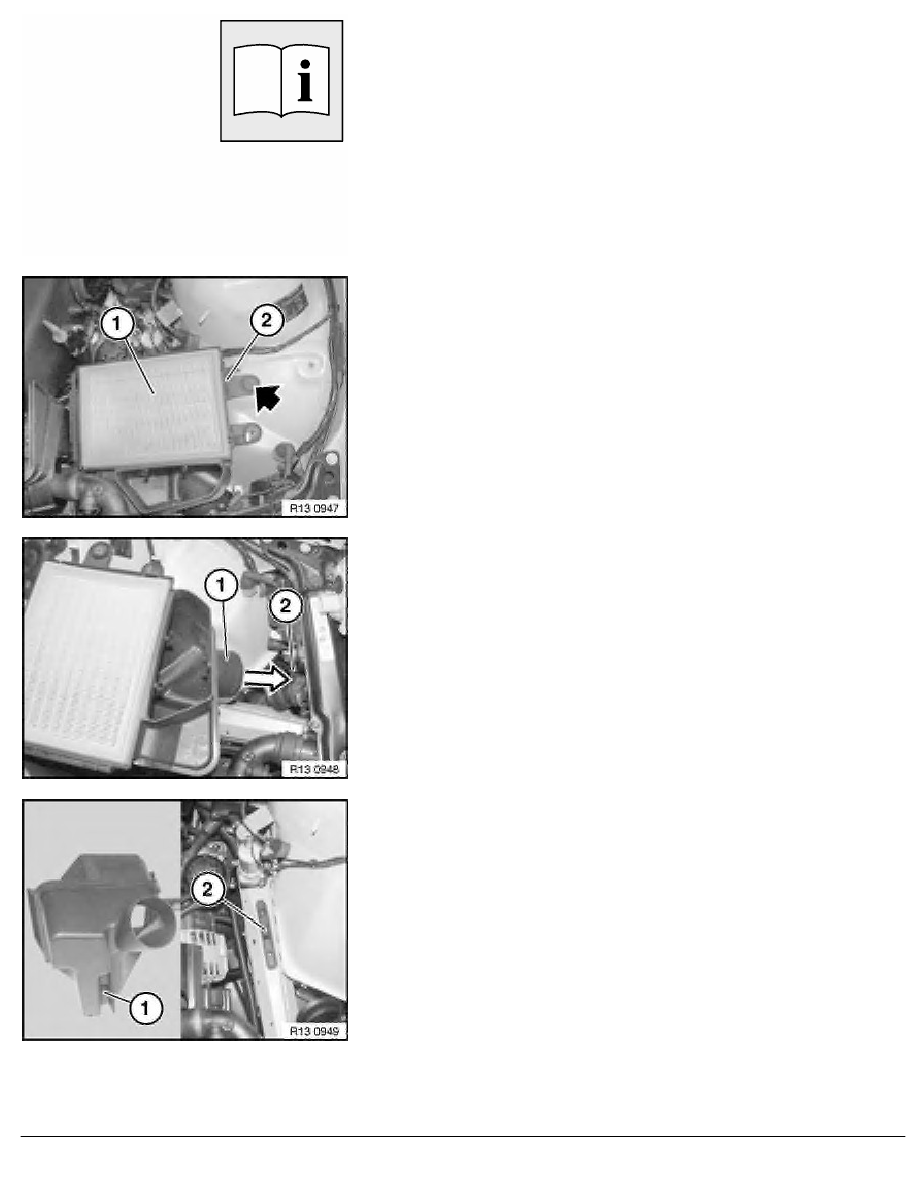

Check seal between intake hose and intake air manifold for
damage, replace if necessary.
Installation:
Insert retaining lugs (1) in openings (2).
RA Removing and installing intake filter housing (S54)
BMW AG - TIS
16.02.2013 16:48
Issue status (12/2007) Valid only until next DVD is issued
