3 Series E46 M3 CSL (S54) COUPE
Note:
Clean connection point/screw-on surfaces of piston accumulator
and hydraulic unit before releasing.

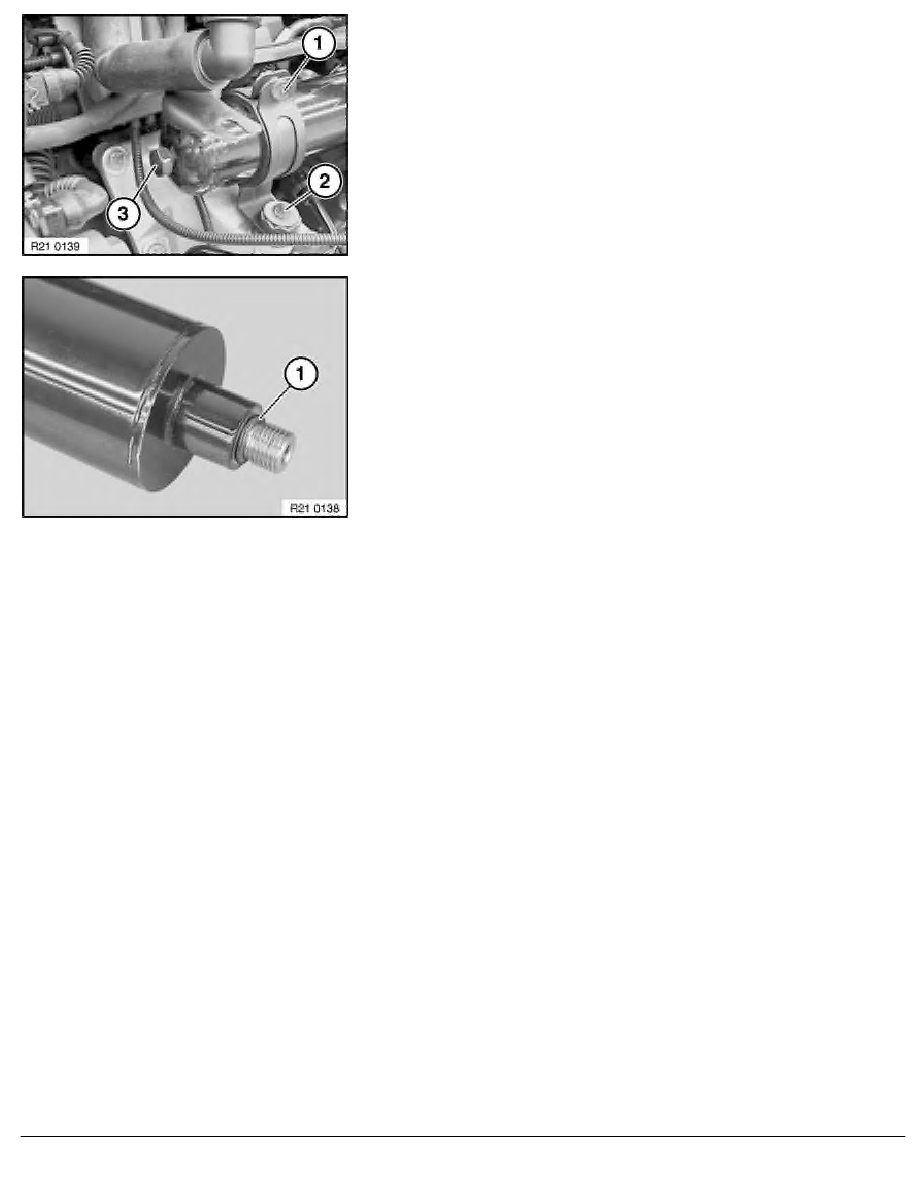

Unscrew screws (1) and (2).
Release pressure accumulator at hexagon head (3).
Tightening torque, 21 52 8AZ .
Remove pressure accumulator.
Installation:
Observe installation position of sealing ring (1).
RA Replacing pressure accumulator for hydraulic unit (S6S 420G SMG)
