3 Series E46 M3 (S54) COUPE

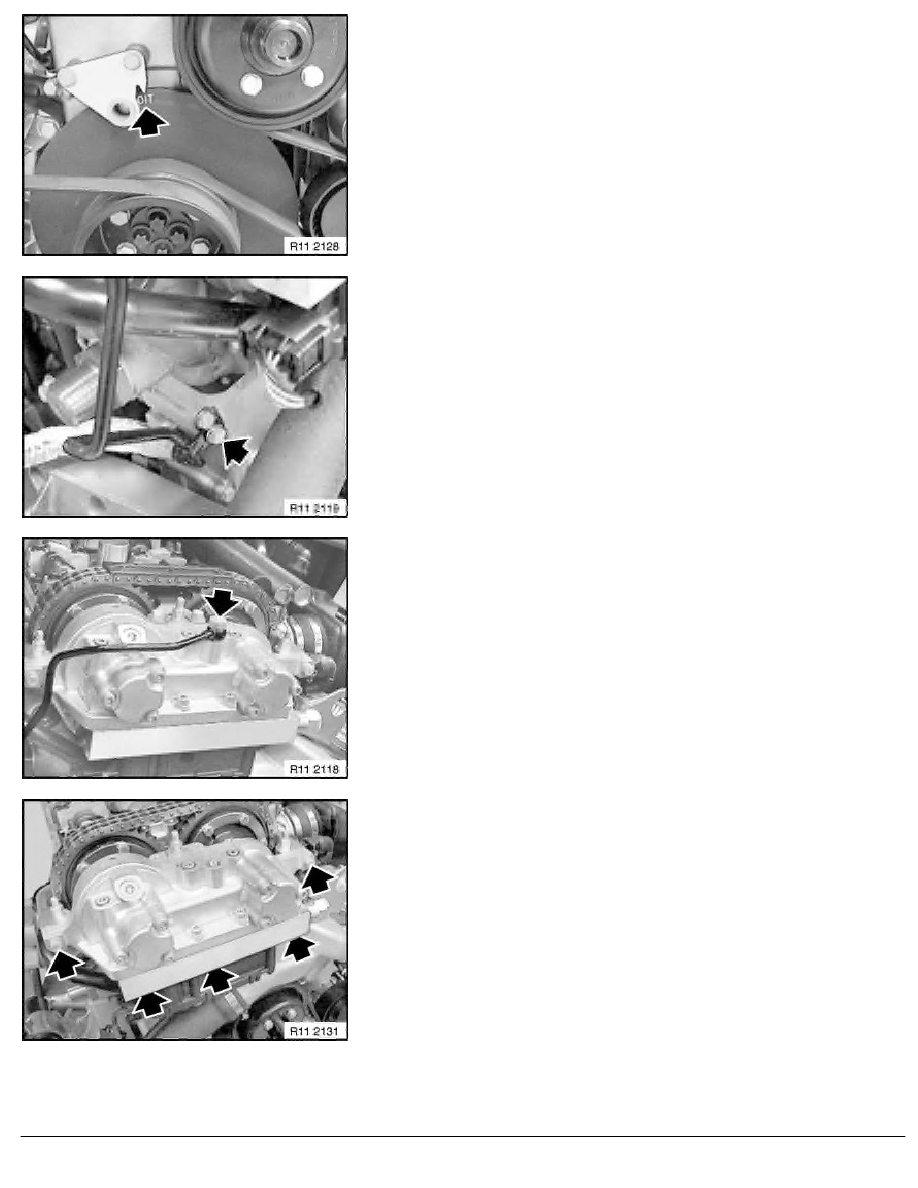

Note:
TDC allocation above marking on vibration damper is
sufficient.
Detach bracket of oil line from timing case cover.
Remove oil line from VANOS adjustment unit.
Release screws on VANOS adjustment unit.
RA Removing and installing, sealing/replacing VANOS adjustment unit (S54)
