3 Series E46 M3 (S54) COUPE
Installation:

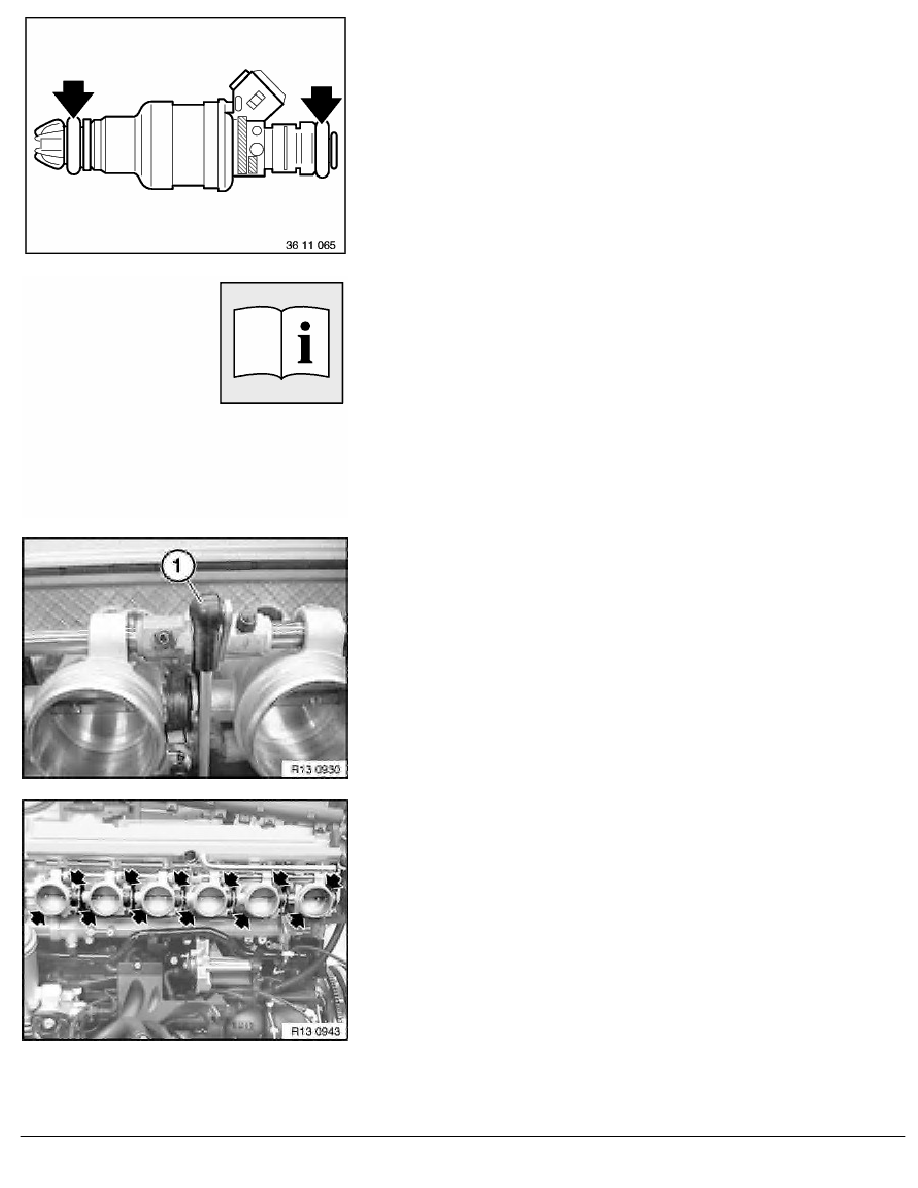

Check O-rings, replace if necessary.
When fitting, coat all O-rings with lubricant SAE 90.
Remove pulse generator for inlet camshaft.
Unclip pull rod (1) for throttle actuator on throttle side.
Release screw connection of throttle assemblies.
Remove throttle assemblies.
RA Removing and installing/sealing throttle assembly (S54)
