3 Series E46 M3 (S54) COUPE

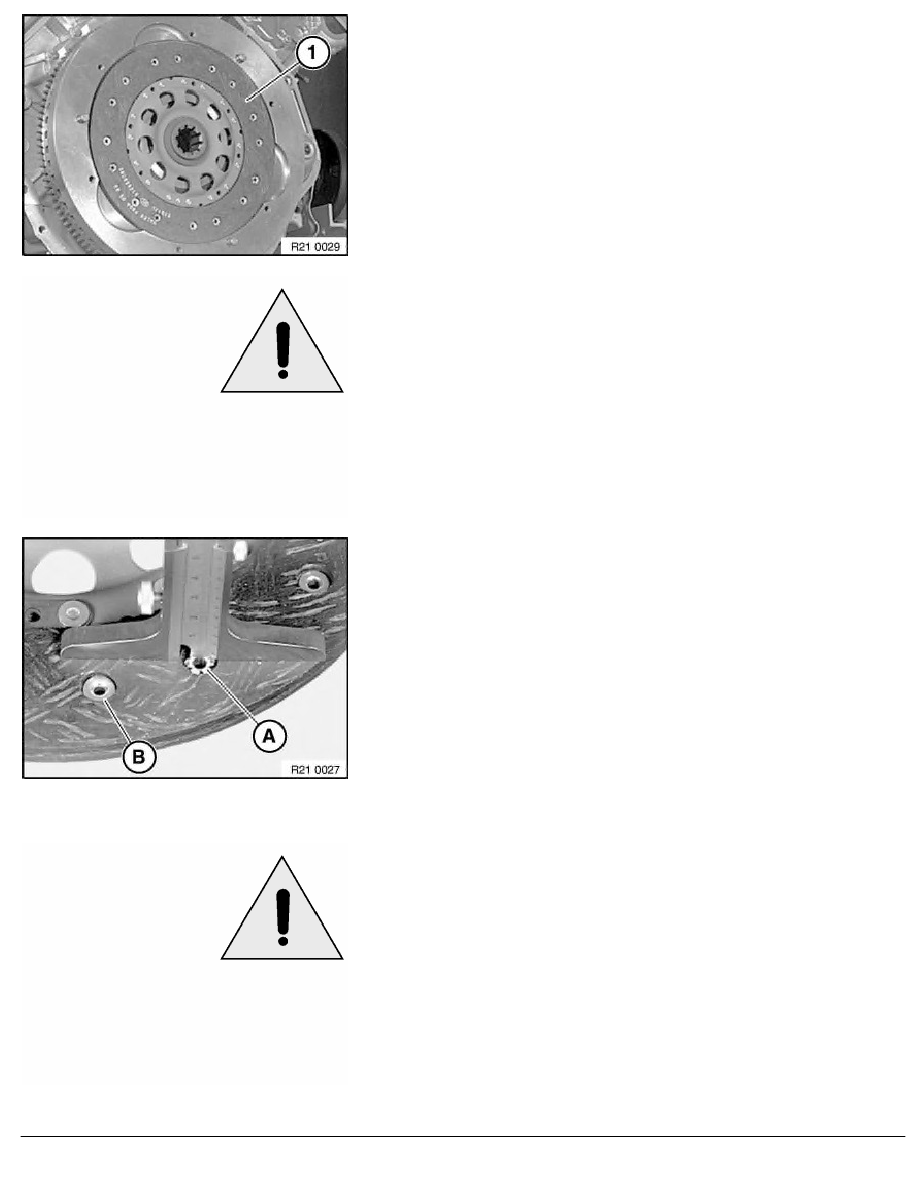

Remove clutch plate (1) from flywheel.
Clean flywheel, check for wear and damage.
Replace damaged flywheel.
Check grooved ball bearing in crankshaft for ease of movement
and tightness and if necessary replace grooved ball bearing.
Important!
Always replace clutch plates fouled e.g. by oil, cleaning agent.
Check clutch plate for damage and friction rust in hub profile and
replace if necessary.
Check clutch disk for wear:
Measure lining protrusion at lining rivets at closing head (A) in
each case.
Note:
Rivet connection
a)
Closing head
b)
Swage head
Replace clutch plate if lining protrusion at closing head (A) is less
than 1 mm.
Push clutch disk onto the cleaned transmission input shaft and
check for easy movability.
Important!
Do not clean SAC clutch with high-pressure cleaner or
washing machine as this may impair function of adjustment
unit.
Clean friction surface only.
Check SAC for wear and damage and replace if necessary.
RA Removing and installing or replacing clutch
