3 Series E46 M3 (S54) COUPE
Important!
Before installing an SAC clutch which has been in service with
a new clutch plate: always reset adjustment ring in new
position.
Set SAC clutch down on a clean surface.

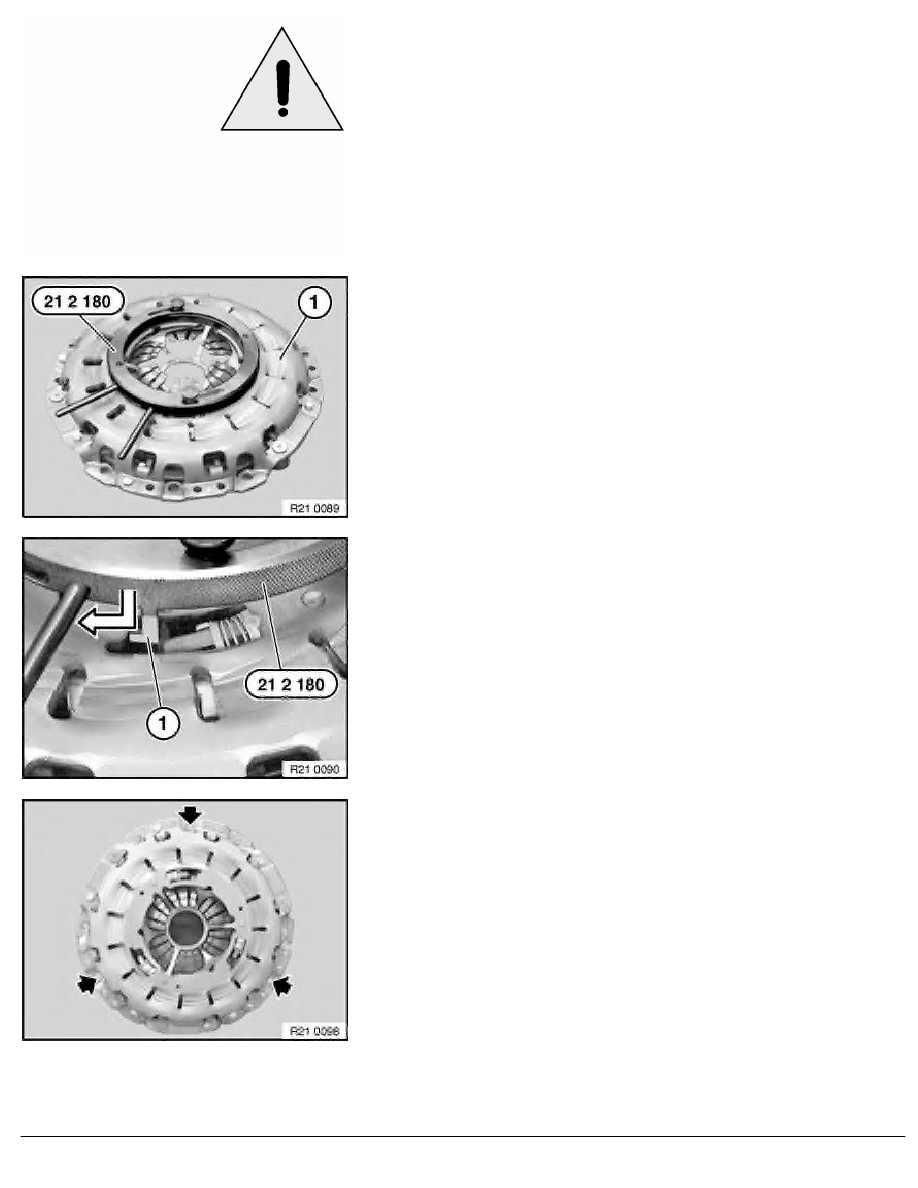

Install special tool 21 2 180 in SAC clutch (1).
Note:
Locking hooks (1) of special tool 21 2 180 must engage in
openings in SAC clutch.
Note:
Insert special tool 21 2 170 only in area of bores for dowel pins.
RA Removing and installing or replacing clutch
