3 Series E46 M3 (S54) COUPE

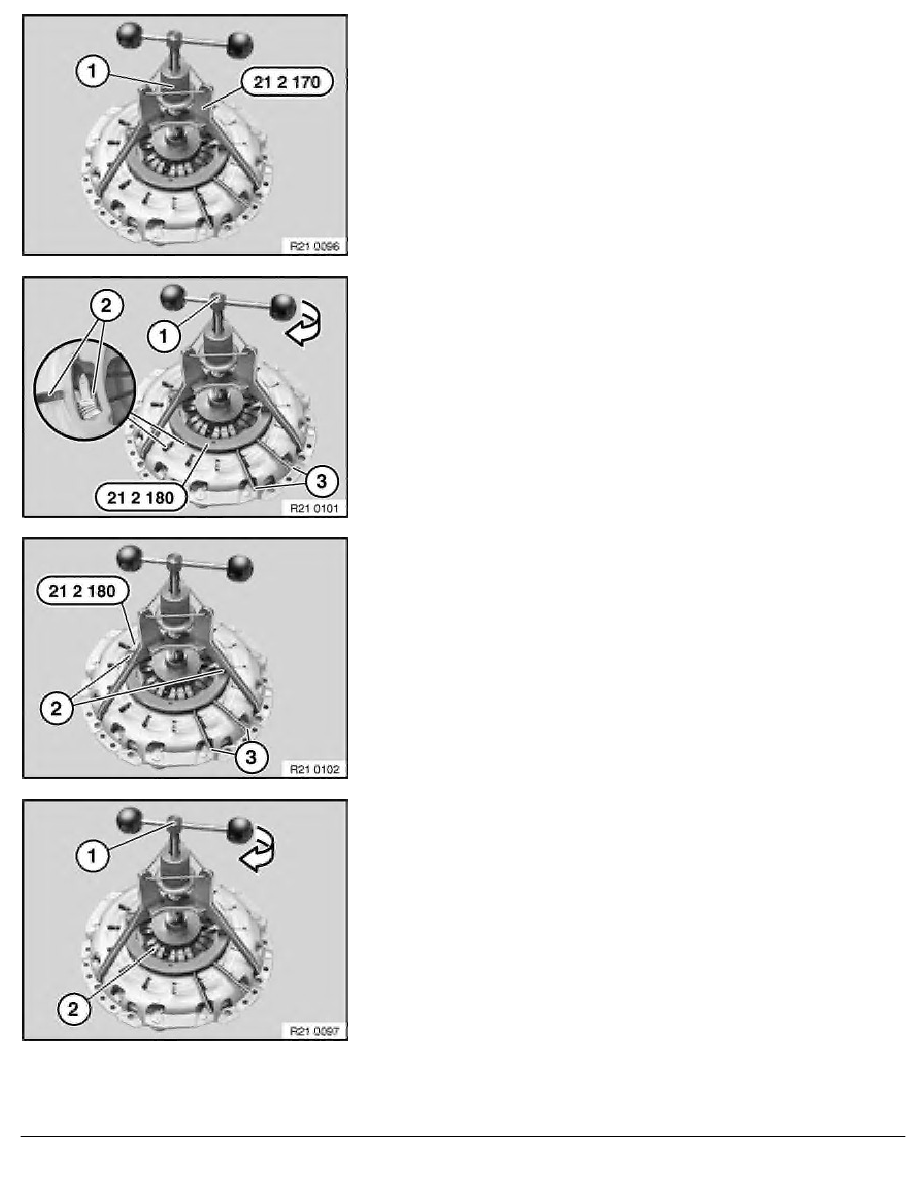

Fit special tool 21 2 170 and tighten down at knurled screw (1).
Screw in spindle (1) until adjustment ring of SAC clutch (2) can
be turned with special tool 21 2 180 at handles (3).
Press special tool 21 2 180 together at handles (3) as far as it
will go and grip firmly.
At same time tighten down knurled screws (2).
Adjustment ring of SAC clutch is now secured in new position.
Screw in spindle (1) until diaphragm spring (2) is pretensioned
up to stop.
RA Removing and installing or replacing clutch
