3 Series E46 M3 (S54) COUPE
Important!

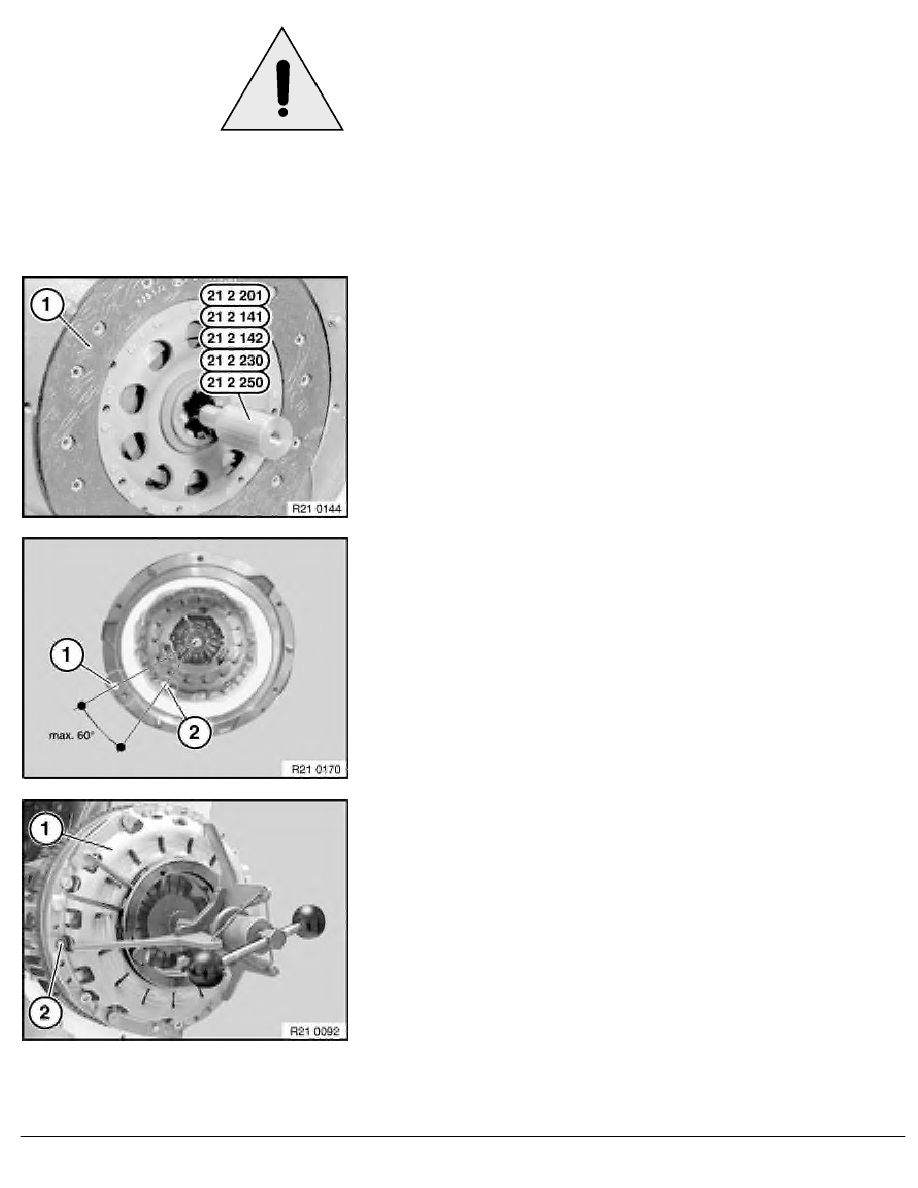

Handle clutch plate with care, do not touch surfaces of friction
linings.
Install clutch plate in correct position.
Pay attention to text "engine end" / "transmission side".
Center clutch plate (1) with special tool 21 2 141 .
Important!
Pay attention to color marking when fitting SAC clutch with
balance marking.
Position color marking (1) on dual-mass flywheel and color
marking (2) on clutch pressure plate as closely as possible to
each other.
Max. possible angle error: 60
°
.
Note:
Fitting with balance marking from 04.2003.
Fit SAC clutch (1) on flywheel.
Pay attention to dowel pins (2).
SAC clutch (1) must be secured by way of dowel pins (2).
Install retaining screws of SAC clutch and tighten down.
Tightening torque: 21 21 1AZ
.
RA Removing and installing or replacing clutch
