3 Series E46 M3 (S54) COUPE

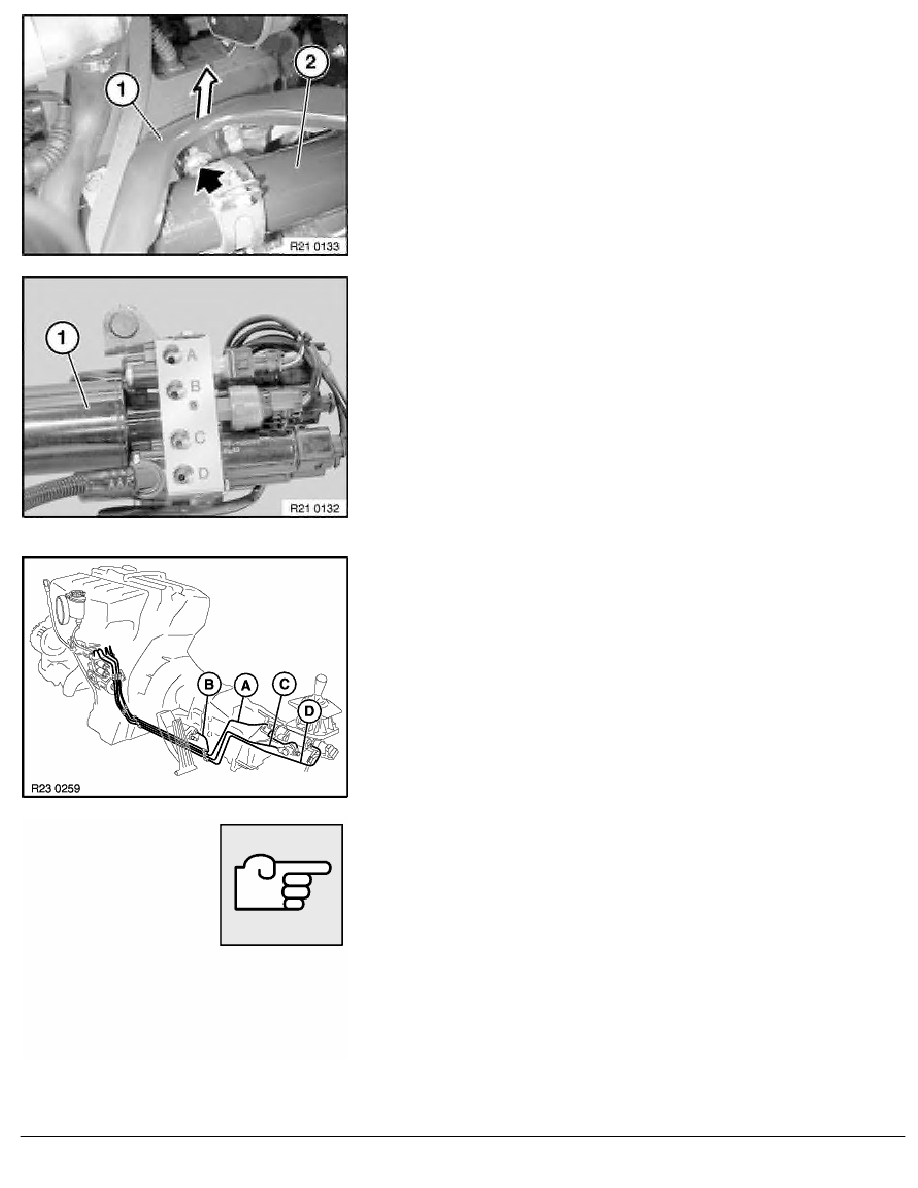

Release screw on manifold support (1).
Pull manifold support (1) upwards a little.
Lift out hydraulic unit.
Installation:
Align manifold support (1) before tightening down screw.
To do so, fit manifold and align manifold support (1).
Tighten down screw.
If necessary, repeat this procedure several times until manifold
support (1) is aligned.
Important!
Observe installation position of hydraulic lines.
Observe colour coding.
-
A => (blue) Shift travel "FORWARD"
-
B => (yellow) Clutch slave cylinder
-
C => (green) Selection angle sensor
-
D => (black) Shift travel "BACK"
Note:
Clean connection points before disconnecting lines.
Installation position of hydraulic lines.
-
A => (blue) Shift travel "FORWARD"
-
B => (yellow) Clutch slave cylinder
-
C => (green) Selection angle sensor
-
D => (black) Shift travel "BACK"
Installation:
Guide pin of hydraulic unit must engage in lower retaining
fixture.
RA Removing and installing/replacing hydraulic unit (S6S 420G SMG)
