3 Series E46 M3 (S54) COUPE
23 41 010
Removing and installing/replacing switch for
gear recognition (S6S 420G SMG)
Note:
After completing work:
Proceed in accordance with test program,
refer to "Service Functions" in DIS Tester.
Read out fault memory and clear fault entries.

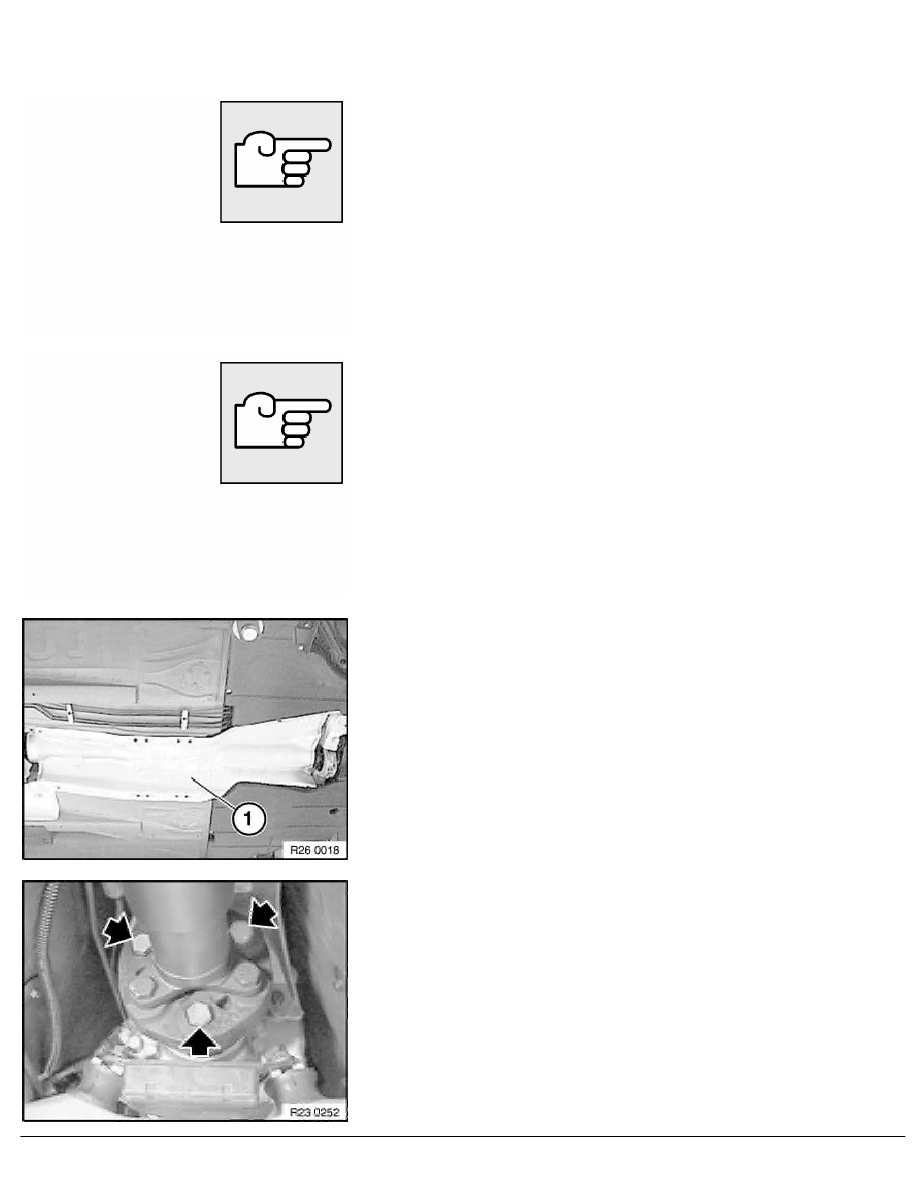

Remove catalytic converter and intermediate pipes.
Remove rear underbody protection.
Remove heat shield (1).
Release screws.
Tightening torque, 26 11 1AZ.
Installation:
Replace self-locking nuts.
RA Removing and installing/replacing switch for gear recognition (S6S 420G SMG)
BMW AG - TIS
16.02.2013 15:30
Issue status (12/2007) Valid only until next DVD is issued
