3 Series E46 M3 (S54) COUPE
51 16 040
Replacing housing on left or right door mirror
(M3)

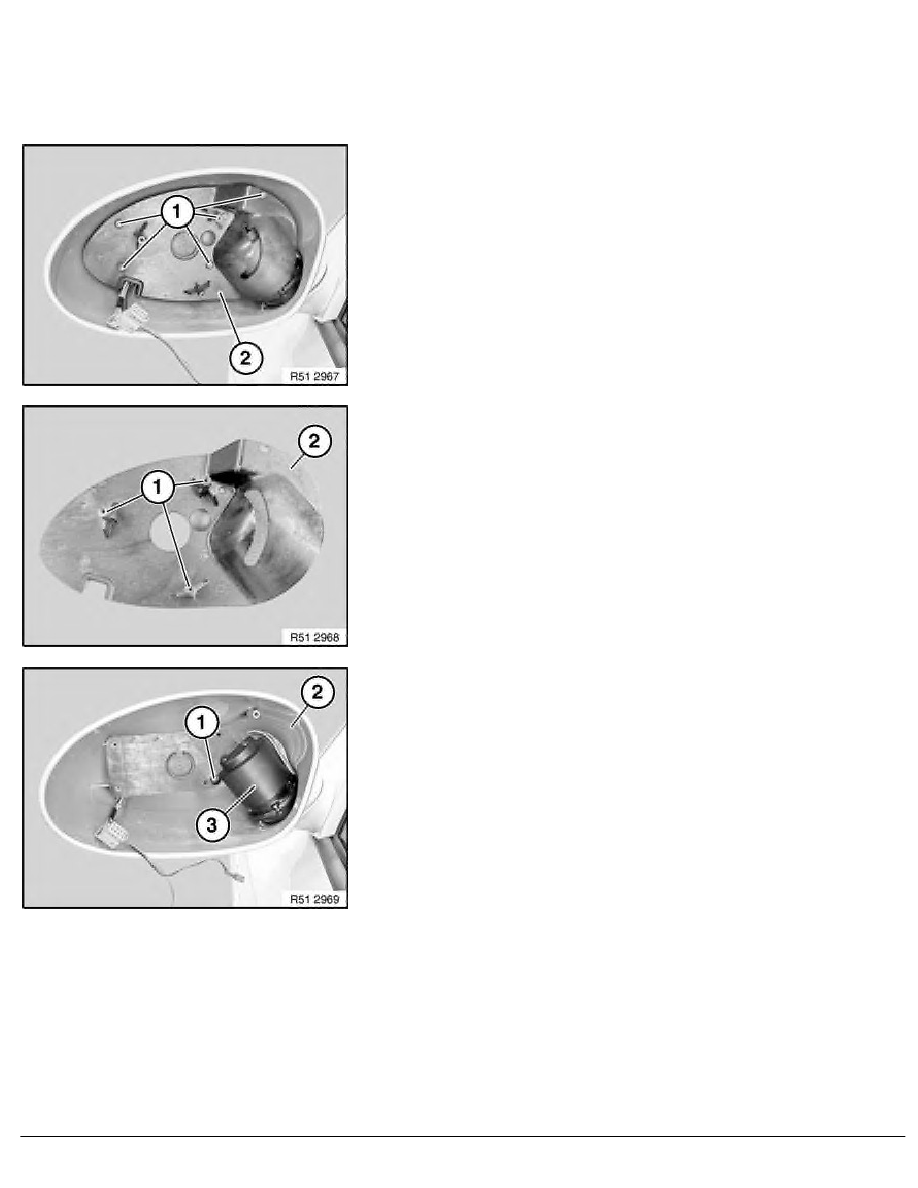

Remove drive for electrically adjustable door mirror.
Release screws (1) and remove housing support plate (2).
Installation:
Tightening torque 51 16 9AZ.
Installation:
Threads (1) of housing support plate (2) must not be damaged.

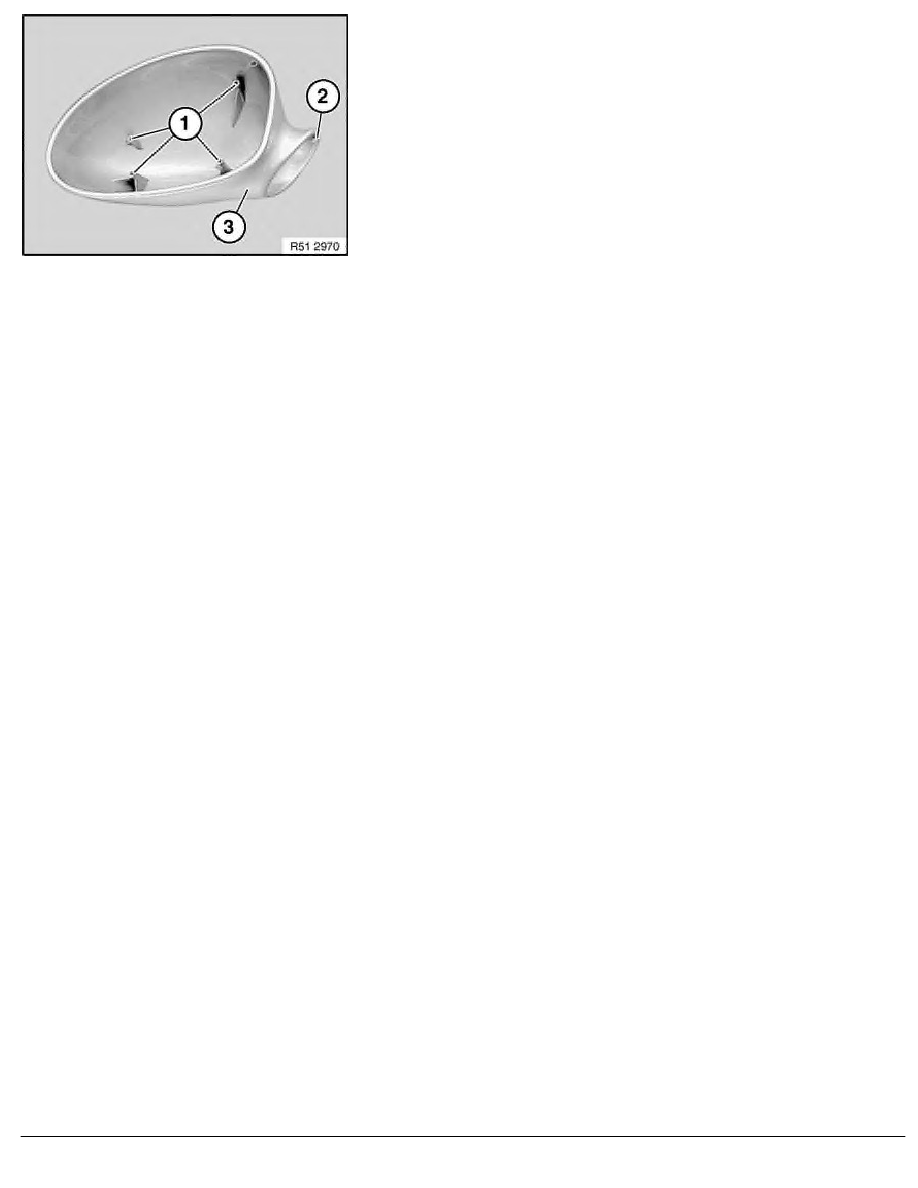

Release screw (1).
Feed housing (2) out of carrier plate (3) and remove.
Installation:
Tightening torque 51 16 9AZ.
RA Replacing housing on left or right door mirror (M3)
