3 Series E92 320i (N46T) COUPE

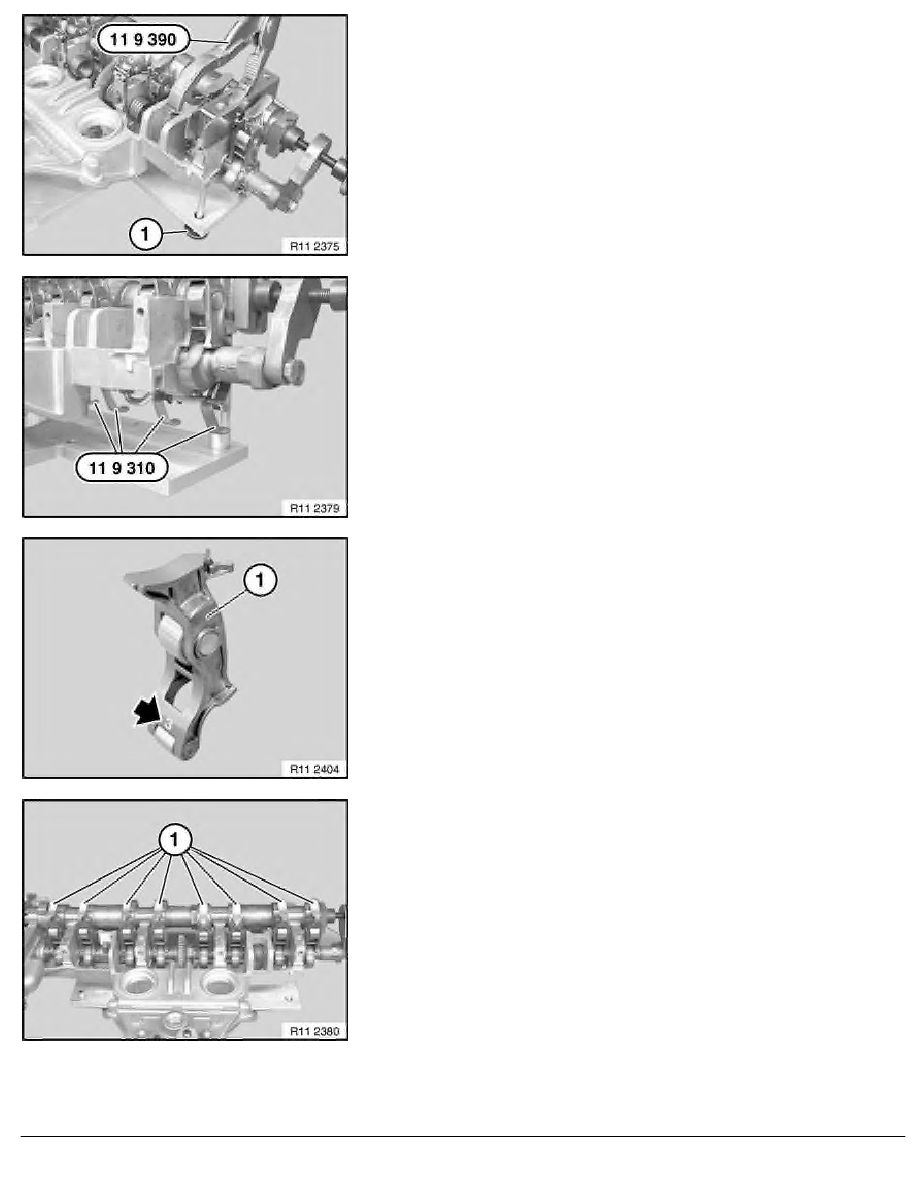

Remove nut (1).
Remove special tool 11 9 390 .
Remove torsion springs of cylinders 1 to 3 in accordance with
same procedure.
Note:
Special tool 11 9 310 secures intermediate levers to oil line.
Remove special tool 11 9 310 from oil line and feed out from
intermediate lever.
Important!
Intermediate levers (1) are divided into individual tolerance
classes.
Only intermediate levers of the same tolerance class may be
fitted in a single engine.
The tolerance classes are designated as illustrated with the
numbers from 1 to 6.
Used intermediate levers (1) may only be reused in the same
position.
Remove intermediate levers (1) and store in neat order.
RA Removing and installing/replacing inlet camshaft (N46T)
BMW AG - TIS
22.01.2013 12:34
Issue status (12/2007) Valid only until next DVD is issued
Copyright
Page - 8 -
