3 Series E92 320i (N46T) COUPE
Release screws.
Tightening torque, 24 00 1AZ
.
Installation:

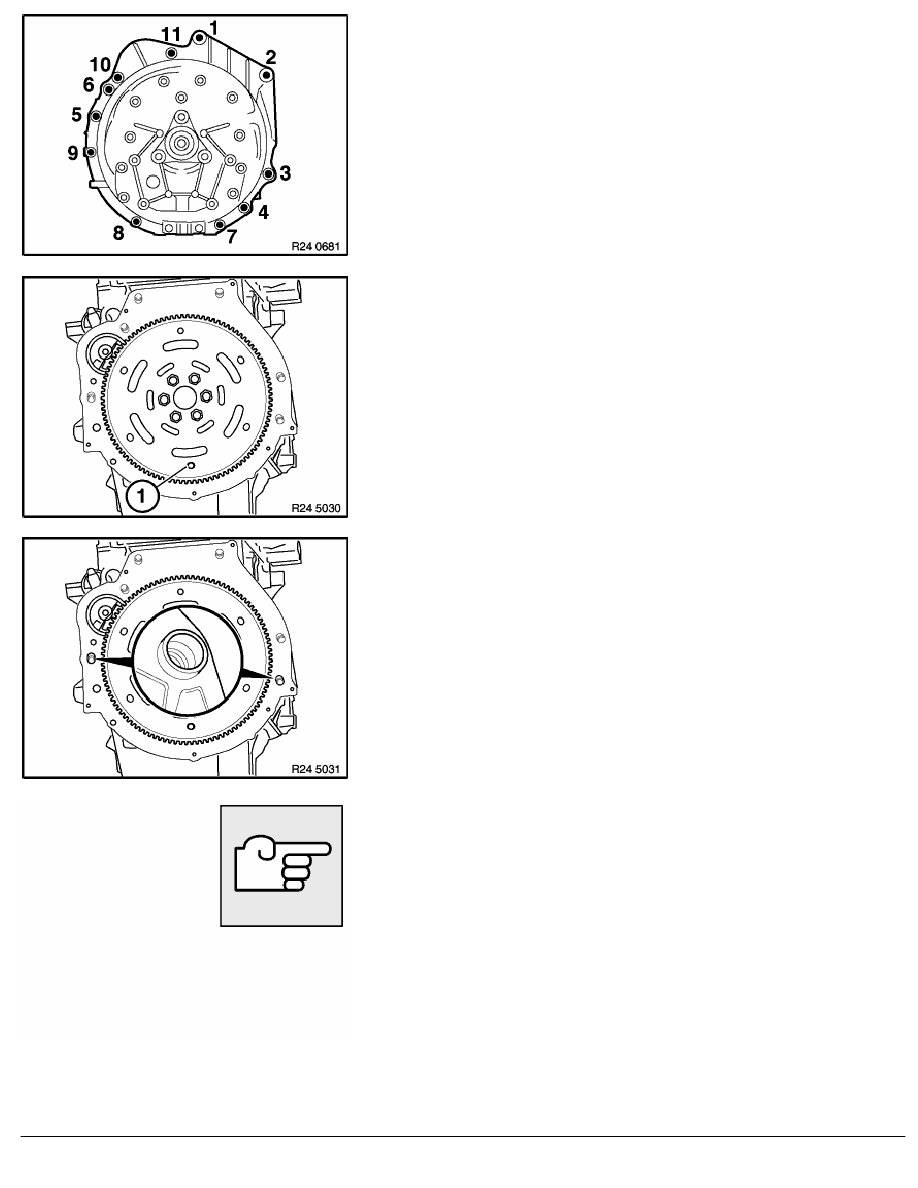

Bore (1) in driving disk must be accessible from opening on
engine oil pan.
Check that dowel sleeves are correctly seated.
Replace damaged dowel sleeves.
Installation:
Rotate torque converter until bore in torque converter is flush with
bore in driving disk.
Flange automatic transmission to engine.
RA Removing and installing automatic transmission (GA6L45R) N45T, N46T
