5 Series E39 M5 (S62) SAL

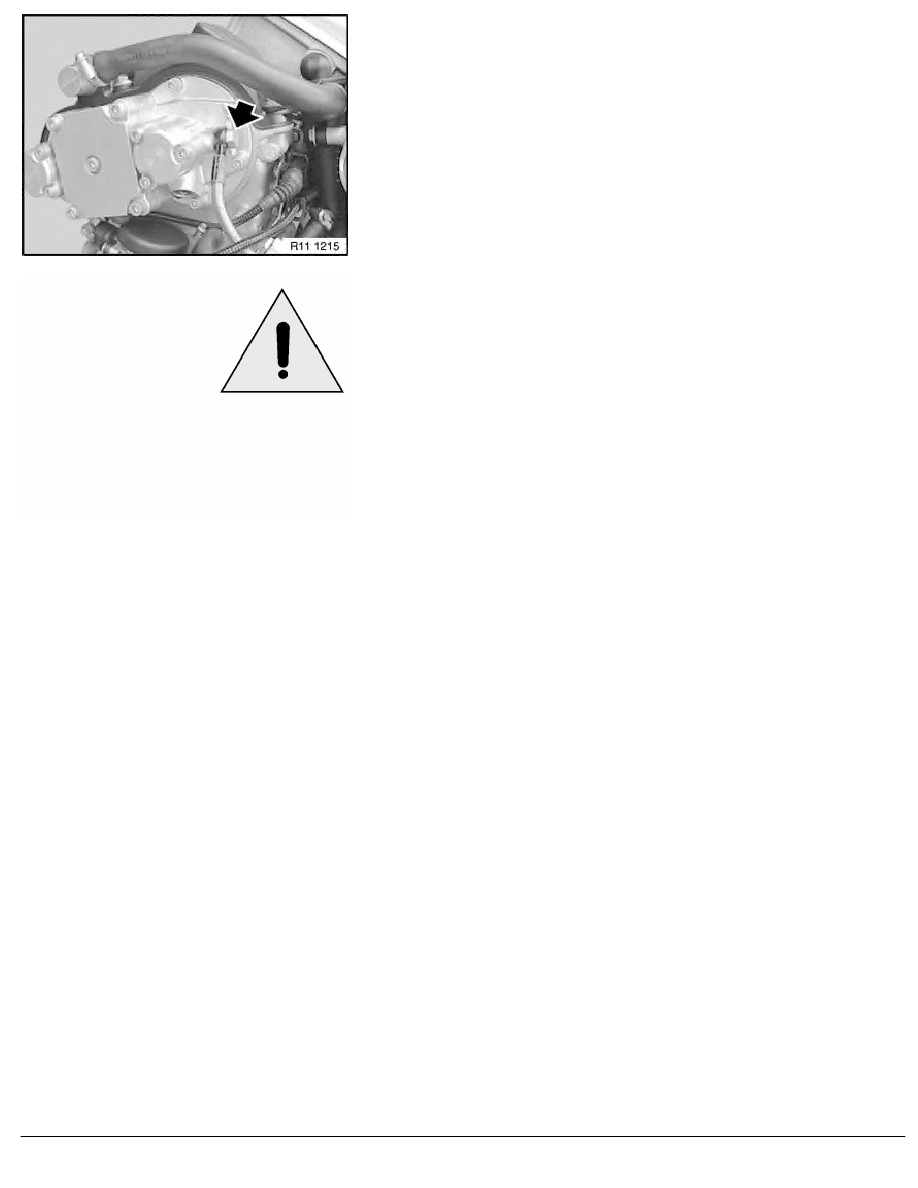

Remove special tool 11 7 130 from VANOS adjustment unit.
Fit oil line to VANOS adjustment unit.
Tightening torque, refer to 11 36 9AZ.
Assemble engine.
Caution!
There is air in the VANOS system once it is opened.
In the first few seconds after startup this results in a clearly
discernible "rattling noise".
This rattling noise does "not" indicate incorrect assembly.
The rattling noise will disappear as soon as the oil pressure
has built up and the system has vented.
RA Removing and installing, sealing/replacing right VANOS adjustment unit (S62)
