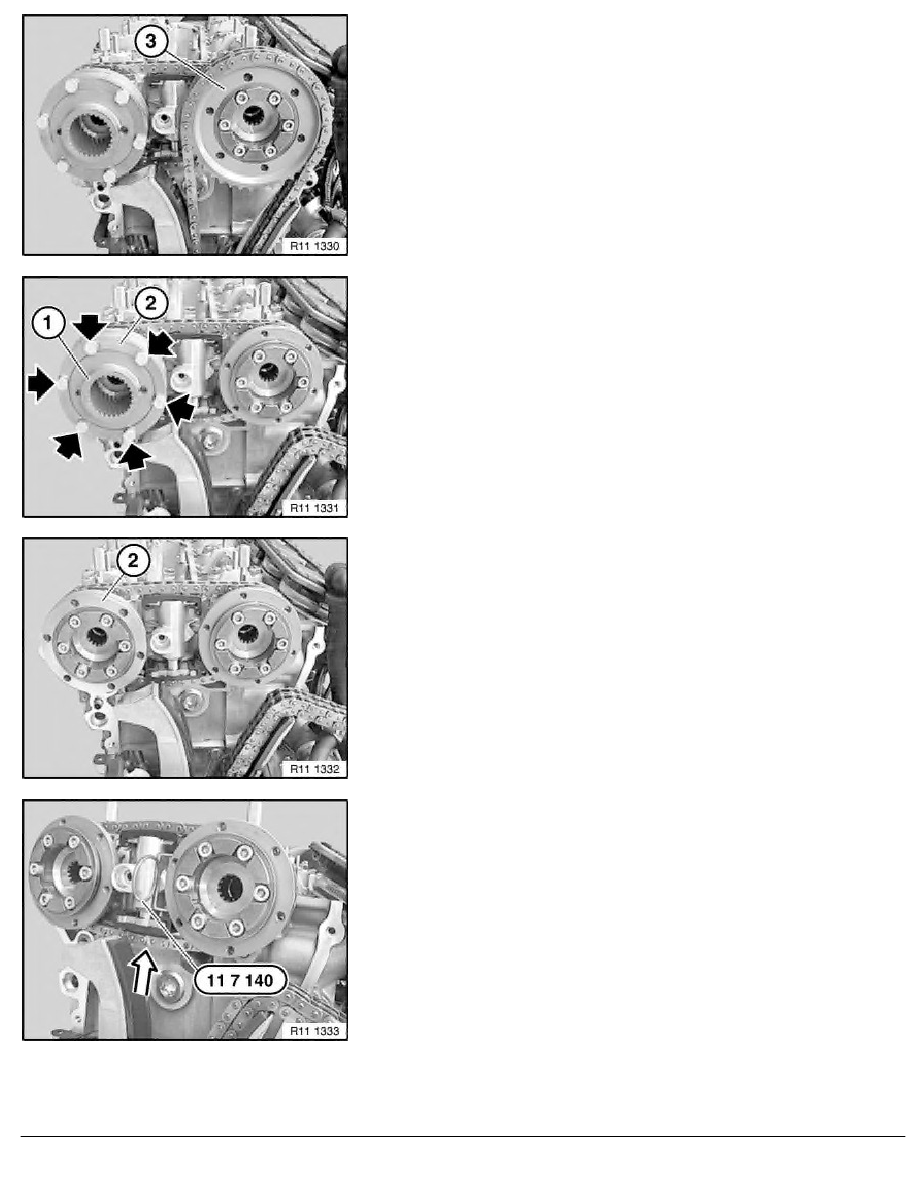

Cylinder bank 1 to 4 (inlet side):
Detach inlet chain wheel (3) from centering sleeve.
Keep inlet chain wheel (3) and chain tensioned.
Feed out inlet chain wheel (3).
Secure chain against slipping down.
Cylinder bank 1 to 4 (exhaust side):
Note:
The spline hub (1) accommodates a plate spring and a
supporting ring.
Take care: the supporting ring can easily fall out when removed.
Remove slackened screws on exhaust side.
Remove spacer ring (2) and spline hub (1) with plate spring and
supporting ring.
Cylinder bank 1 to 4 (exhaust side):
Take off spacer ring (2).
Cylinder bank 1 to 4:
Compress secondary chain tensioner at bottom and lock with
special tool 11 7 140 .
