5 Series E39 M5 (S62) SAL

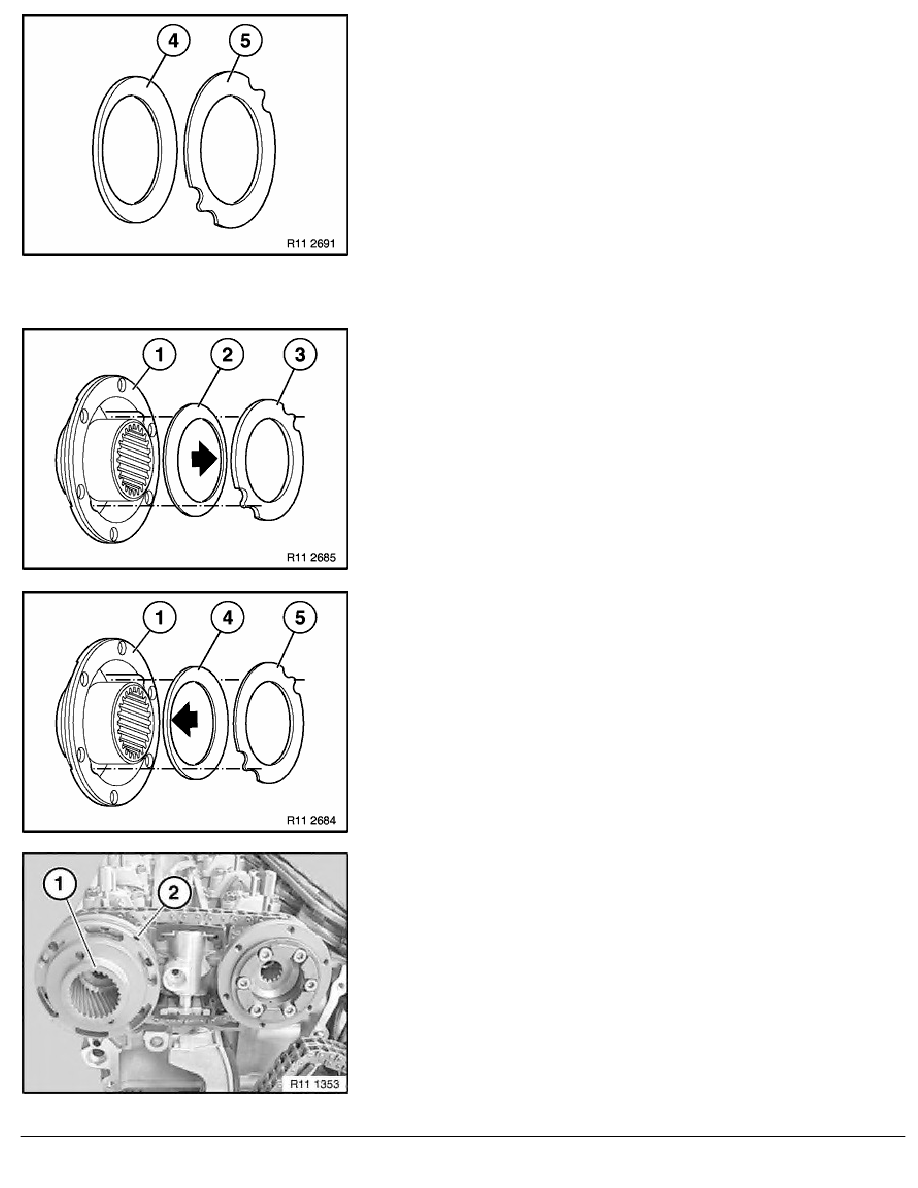

Cylinder bank 1 to 4 (exhaust side):
Version from 9/2001
Caution!
Risk of mixing up parts.
Note:
Plate spring (4) and supporting ring (5) form a set and may only
be fitted together.
Thickness of plate spring (4) = 1.25 mm.
Thickness of supporting ring (5) = 3.20 mm.
Plate spring (4) and supporting ring (5) may also be fitted in
engine before 9/2001.
Cylinder bank 1 to 4 (exhaust side):
Version up to 9/2001
Caution!
Observe installation direction of plate spring (2).
Note:
The small support diameter of the plate spring (2) points in the
direction of the supporting ring (3). Supporting ring is supported
with retaining lugs in spline hub (1).
Insert plate spring (2) and supporting ring (3) in spline hub (1).
Cylinder bank 1 to 4 (exhaust side):
Version from 9/2001
Caution!
Observe installation direction of plate spring (4).
The small support diameter of the plate spring (4) points in the
direction of the spline hub (1). Supporting ring is supported with
retaining lugs in spline hub (1).
Insert plate spring (4) and supporting ring (5) in spline hub (1).
Cylinder bank 1 to 4 (exhaust side):
Note:
Fit spline hub (1) with plate spring and supporting ring so that
bore hole (2) is positioned as shown in illustration.
RA Removing and installing/replacing right VANOS gear (S62)
