5 Series E39 M5 (S62) SAL

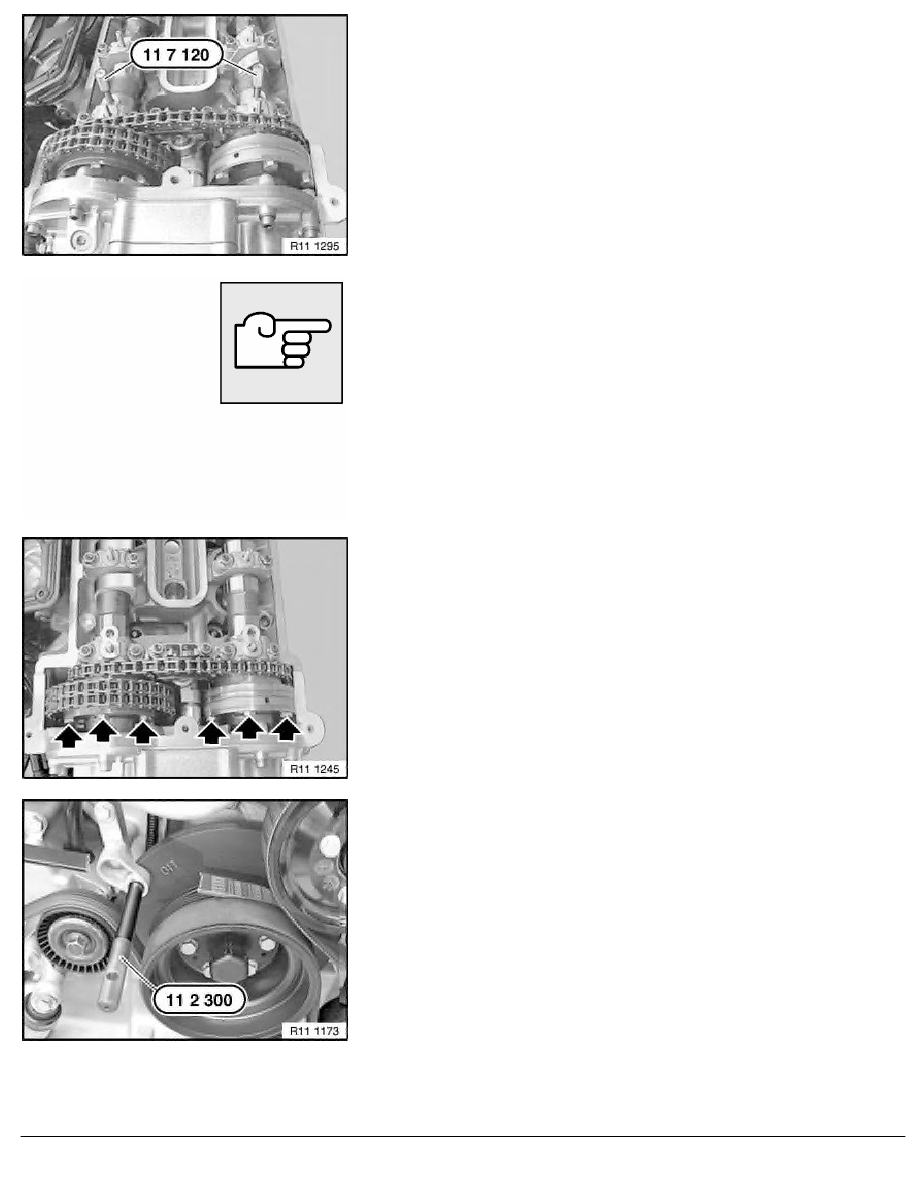

Remove special tool 11 7 120 .
Remove special tool 11 2 300 . Crank engine at central bolt in
direction of rotation a further revolution up to overlap TDC
position.
Note:
To tighten down screws on VANOS gear: Use special tool
11 7 200 .
Tighten down remaining six bolts on VANOS gear to 10 Nm.
Rotate crankshaft in direction of rotation as far as ignition TDC
position of cylinder 1. Secure vibration damper in position with
special tool 11 2 300 .
RA Removing and installing/replacing toothed shafts of VANOS gear on left (S62)
