6 Series M6 (S85) Coupe
11 36 150
Removing and installing / replacing right
exhaust VANOS gear (S85)
Special tools required:
•
11 5 100
•
11 5 301
•
11 5 320
•
11 5 370
•
11 5 381
•
11 5 382
•
11 5 410
Necessary preliminary tasks:
•
Remove right VANOS adjustment unit.
Important!
Both inlet and exhaust camshafts can be adjusted in the
1st cylinder firing TDC position.
The procedure for checking timing is different from that for
adjusting.
Secure special tool 11 5 320 to vibration damper in 1st cylinder
firing TDC position.

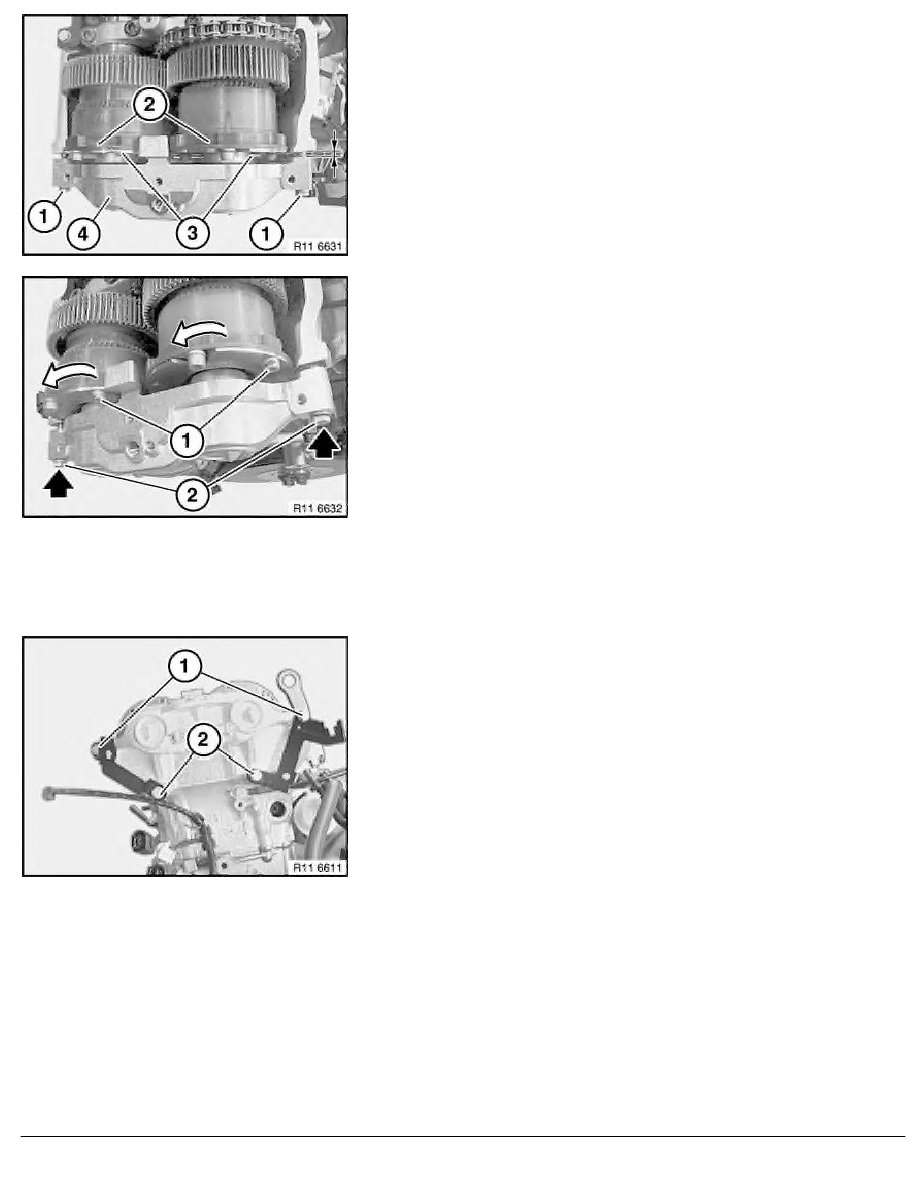

Position of camshafts, cyl. 1-5, in 1st cylinder firing TDC position.
Dihedron of camshafts is vertical to cylinder axis, lettering of
camshaft points upwards (E1).
