6 Series M6 (S85) Coupe
11 36 512
Checking oil pressure of VANOS adjustment
unit (S85)

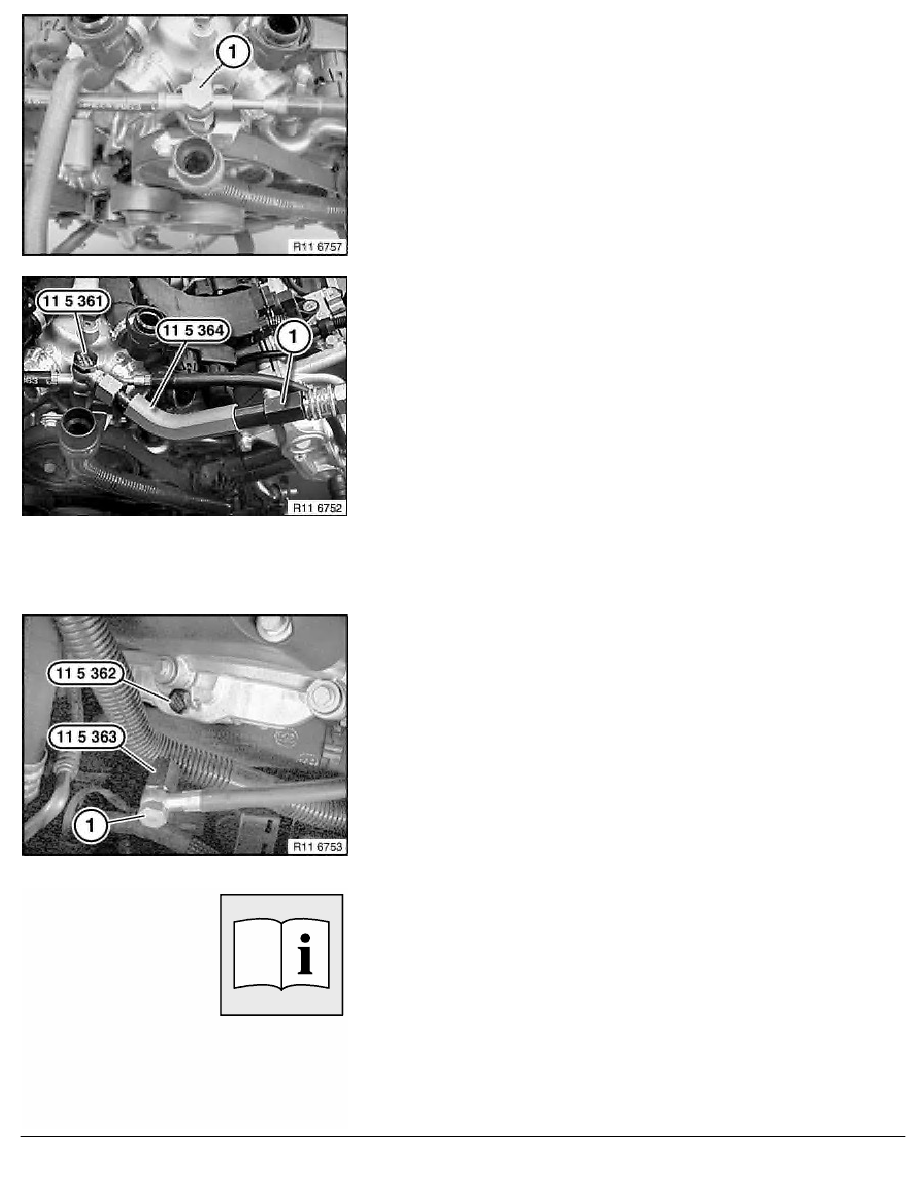

Special tools required:
•
11 5 361
•
11 5 362
•
11 5 363
•
11 5 364
Warning!
Tighten all screw connections to specified torque.
Oil pressure at VANOS adjustment unit is approx. 80 bar.
Necessary preliminary tasks:
•
Run engine up to normal operating temperature.
•
Connect diagnosis tester.
•
Work through "VANOS control pressure banks 1 and 2"
test module.
•
All setpoint values are stored in the test module.
VANOS oil pressure measurement can be carried out exclusively
with the Group Tester One (GT1) in conjunction with the
Measurement Interface Box (MIB).
RA Checking oil pressure of VANOS adjustment unit (S85)
BMW AG - TIS
19.01.2013 13:25
Issue status (12/2007) Valid only until next DVD is issued
