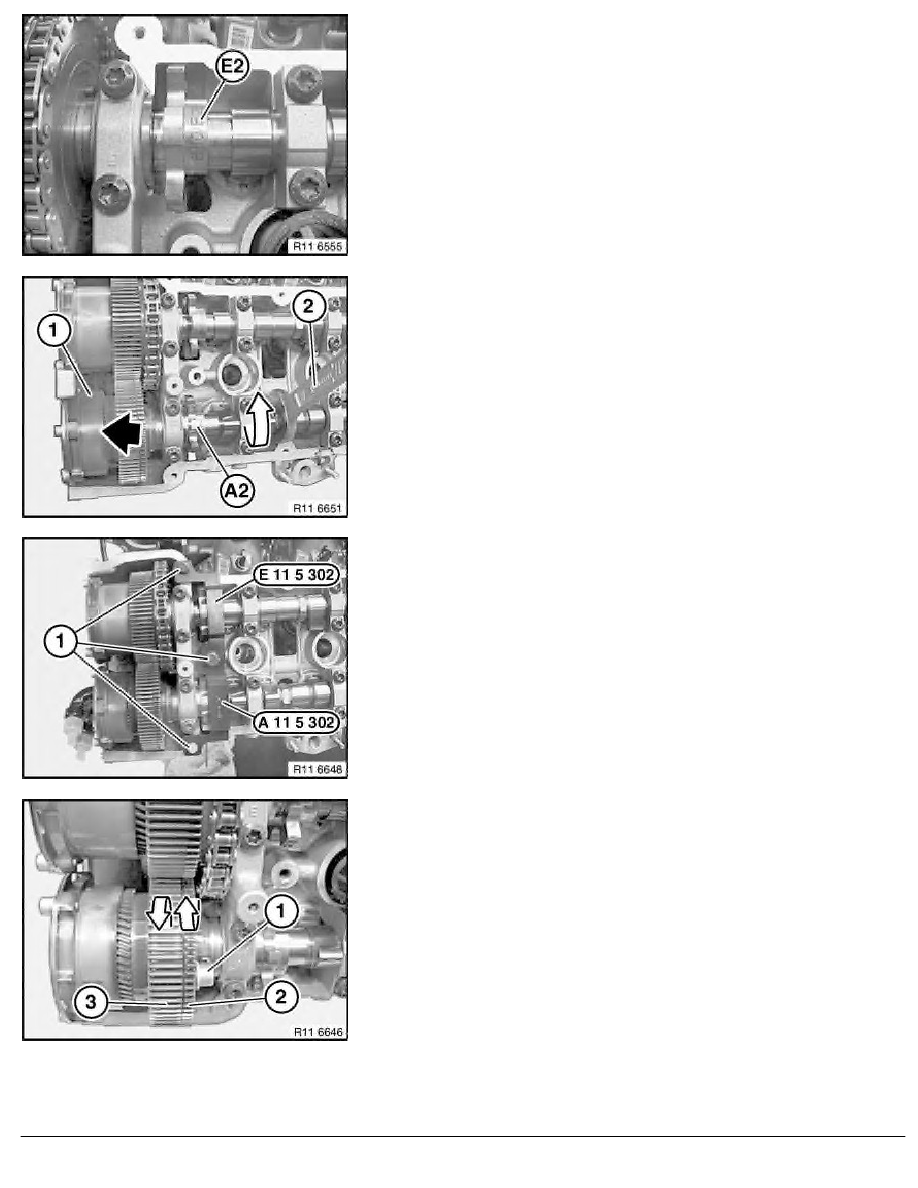

Position of inlet camshaft, cylinders 6-10.
Designation (E2) on dihedron points upwards.
Rotate exhaust camshaft at hexagon head with an open-end
wrench (2) in direction of arrow until special tool A 11 3 302
can be attached.
Designation (A2) on dihedron points upwards.
Note:
Exhaust VANOS gear (1) adjusted in direction of
arrow (advance).
Disconnect inlet and exhaust camshafts.
Attach special tool A 11 5 302 .
Attach special tool E 11 5 302 and secure with bolts (1).
Important!
Screw in bolts (1) without fail, risk of damage to camshafts.
Important!
Removal/installation is not possible without hexagon socket
screw (1).
Hexagon socket screw (1) with washer must not be longer
than 18 mm.
Gearwheels (2 and 3) of exhaust VANOS gear are tensioned
with a spring.
Insert M8x18 hexagon socket screw (1) into exhaust VANOS
gear.
RA Removing and installing / replacing left inlet VANOS gear (S85)
