7 Series E65 735i (N62) SAL

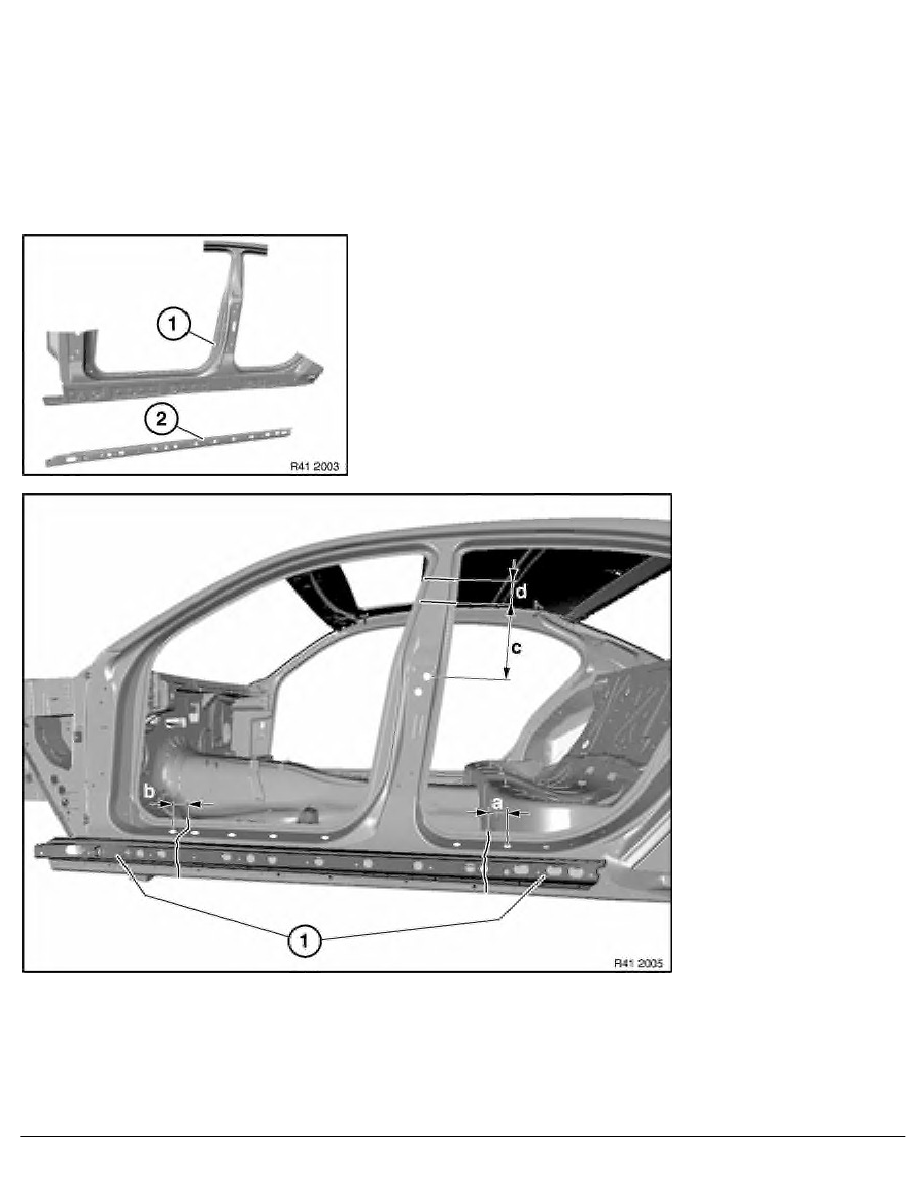

Measurement b = approx. 115 mm behind bore dia. 6 mm.
Measurement c = approx. 330 mm above top door hinge mounting.
Measurement d = approx. 100 mm above cut c.
Open weld joints on outer entrance attachment (1) before and after severance cuts and remove components.
Mark severance cut in accordance with specified measurement and cut.
Caution!
Cut outer plate only for following severance cut.
Measurement a = approx. 380 mm above top door hinge mounting.
Open weld joints in areas (1).
RA Replacing cover for longitudinal member with left or right door pillar (partial
