7 Series E65 745d (M67TU) SAL
Important!

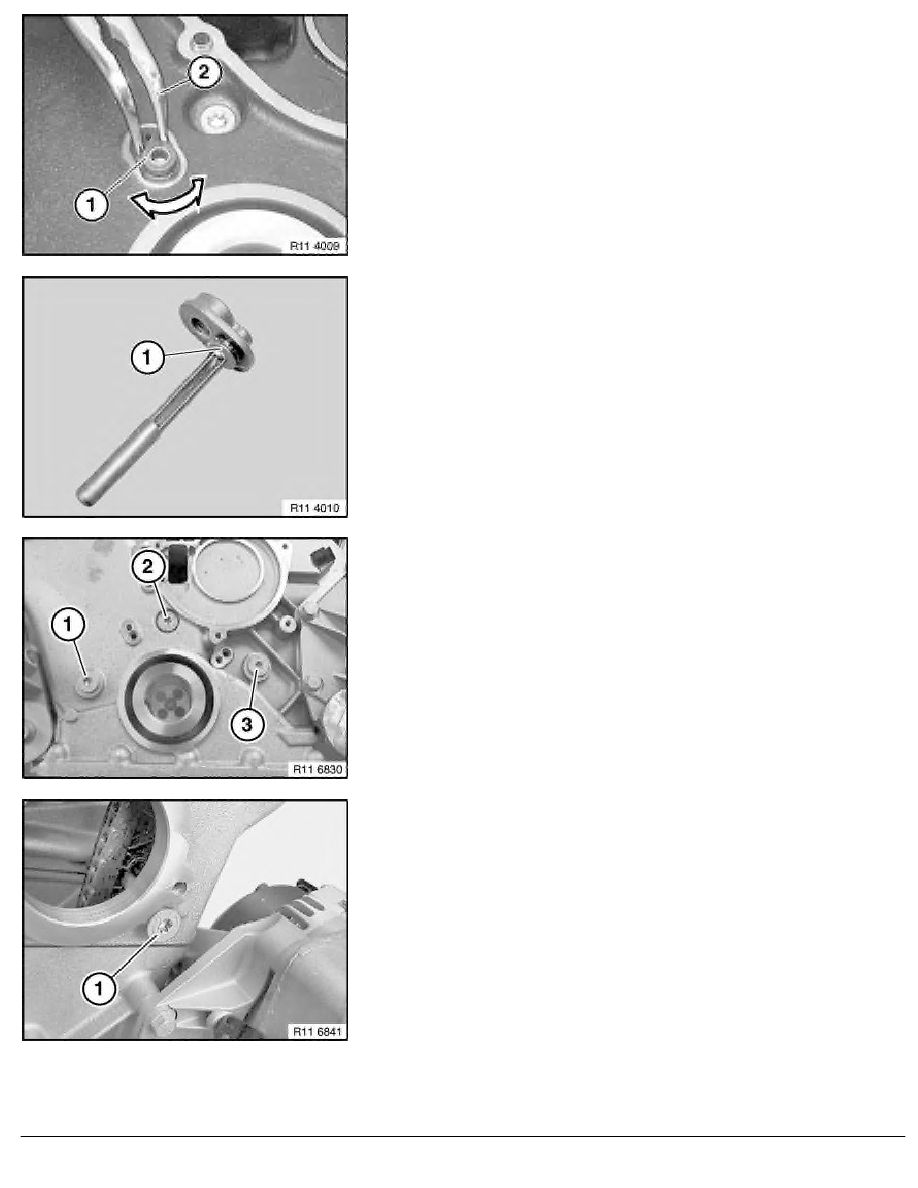

Risk of oil spray nozzle (1) breakage.
Carefully move both oil spray nozzles (1) back and forth with
pointed pliers (2).
Slowly withdraw both oil spray nozzles (1).
Installation:
Replace O-ring (1).
Important!
Do not mix up the three bearing pins (1 / 2 and 3).
The three bearing pins differ in length.
Bearing pins are microencapsulated and must be replaced.
Do not release bearing pins (1 / 2 and 3).
Remove bearing pin (1) on cylinder head on left and right.
Installation:
Bearing pins are microencapsulated and must be replaced.
RA Replacing both timing chains (M67)
